NPN bipolar junction transistor (BJT) for power applications. Features a 60V collector-emitter voltage (VCEO) and a 10A continuous collector current. Operates with a minimum DC current gain (hFE) of 60 and a transition frequency of 50MHz. Housed in a TO-220-3 package with tin, matte contact plating. Rated for a maximum power dissipation of 2W and operates across a temperature range of -55°C to 150°C. RoHS compliant and lead-free.
Frequency50MHz
PackageTO-220-3
Current Rating10A
PolarityNPN
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Onsemi D44H8G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Onsemi D44H8G technical specifications.
General
| Package/Case | TO-220-3 |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Breakdown Voltage | 60V |
| Collector Emitter Saturation Voltage | 1V |
| Collector Emitter Voltage (VCEO) | 60V |
| Collector-emitter Voltage-Max | 1V |
| Contact Plating | Tin, Matte |
| Current Rating | 10A |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 50MHz |
| Gain Bandwidth Product | 50MHz |
| Height | 9.28mm |
| hFE Min | 60 |
| Lead Free | Lead Free |
| Length | 10.28mm |
| Max Collector Current | 10A |
| Max Frequency | 50MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2W |
| Number of Elements | 1 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | NPN |
| Power Dissipation | 2W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 50MHz |
| DC Rated Voltage | 60V |
| Width | 4.82mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi D44H8G Datasheet
Download the complete datasheet for Onsemi D44H8G to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

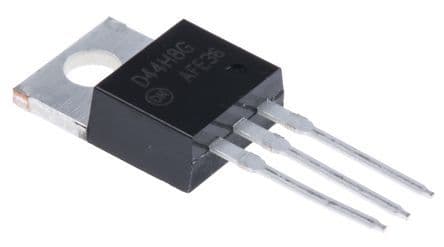

Product Images
