The DTC114EET1 is a surface mount NPN transistor with a collector-emitter voltage maximum of 50V and a continuous collector current of 100mA. It has a power dissipation of 200mW and operates over a temperature range of -55°C to 150°C. The transistor is packaged in a 3-pin SC-75 case and is available in quantities of 3000 on tape and reel. Note that this product contains lead and is not RoHS compliant.
Current Rating100mA
MountingSurface Mount
PolarityNPN
Power200mW
Quick Jump:
Technical Specifications
Onsemi DTC114EET1 technical specifications.
General
| Collector-emitter Voltage-Max | 50V |
| Continuous Collector Current | 100mA |
| Current Rating | 100mA |
| hFE Min | 35 |
| Lead Free | Contains Lead |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| RoHS Compliant | No |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Onsemi DTC114EET1 Datasheet
Download the complete datasheet for Onsemi DTC114EET1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

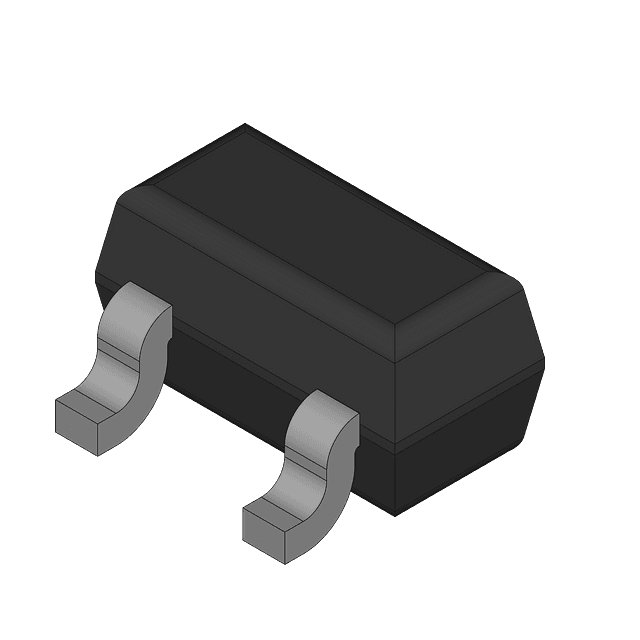

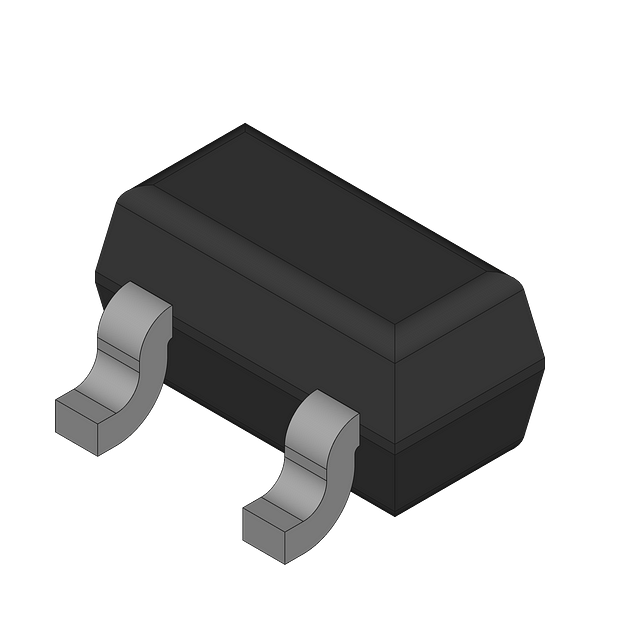

Product Images
