NPN Bipolar Digital Transistor (BRT) in a compact SC-75 (SOT-416) 3-lead package, designed for efficient switching applications. Features a maximum collector-emitter voltage of 50V and a low saturation voltage of 250mV. Offers a continuous collector current rating of 100mA and a minimum DC current gain (hFE) of 80. Operates across a wide temperature range from -55°C to 150°C, with a maximum power dissipation of 200mW. This component is RoHS compliant and halogen-free, supplied in a 3000-piece tape and reel.
PackageSC
Current Rating100mA
PolarityNPN
Power200mW
Quick Jump:
Technical Specifications
Onsemi DTC124XET1G technical specifications.
General
| Package/Case | SC |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Saturation Voltage | 250mV |
| Collector-emitter Voltage-Max | 250mV |
| Continuous Collector Current | 100mA |
| Current Rating | 100mA |
| Emitter Base Voltage (VEBO) | 6V |
| Halogen Free | Halogen Free |
| Height | 0.8mm |
| hFE Min | 80 |
| Lead Free | Lead Free |
| Length | 1.65mm |
| Max Breakdown Voltage | 50V |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 50V |
| Width | 0.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi DTC124XET1G Datasheet
Download the complete datasheet for Onsemi DTC124XET1G to view detailed technical specifications.
No datasheet is available for this part.

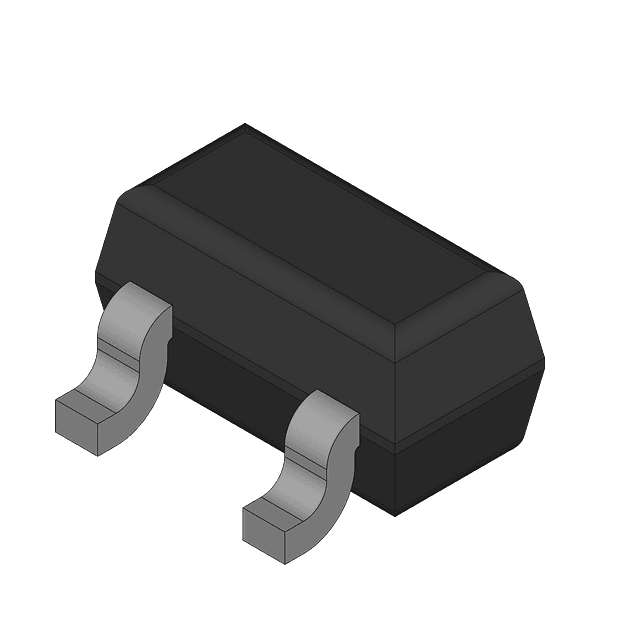

Product Images
