PackageSOT-416
Current Rating100mA
PolarityNPN
Power200mW
Quick Jump:
Technical Specifications
Onsemi DTC143EET1G technical specifications.
General
Package/Case
SOT-416
Collector Emitter Breakdown Voltage
50V
Collector Emitter Voltage (VCEO)
50V
Collector-emitter Voltage-Max
250mV
Continuous Collector Current
100mA
Current Rating
100mA
Halogen Free
Halogen Free
hFE Min
15
Lead Free
Lead Free
Max Breakdown Voltage
50V
Max Collector Current
100mA
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
200mW
Package Quantity
3000
Packaging
Tape and Reel
Polarity
NPN
Power Dissipation
200mW
Radiation Hardening
No
RoHS Compliant
Yes
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Onsemi DTC143EET1G Datasheet
Download the complete datasheet for Onsemi DTC143EET1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

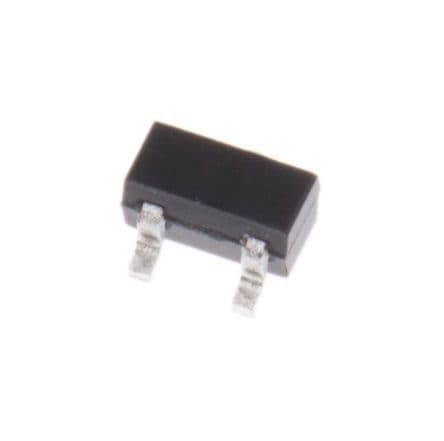

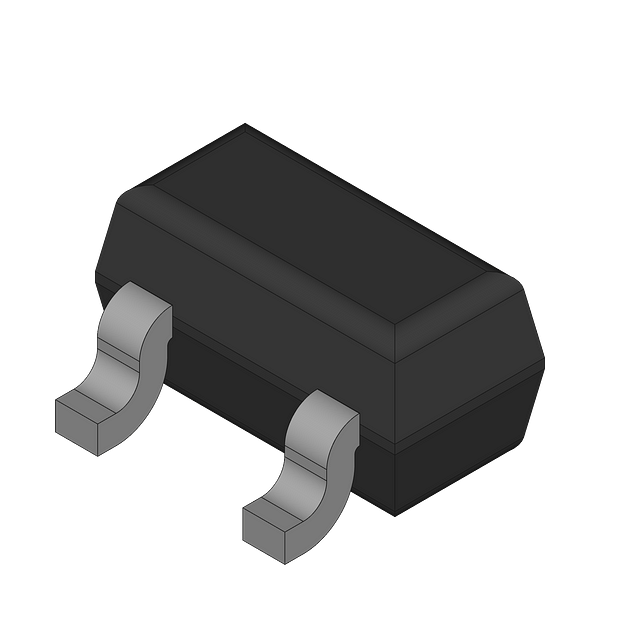

Product Images
