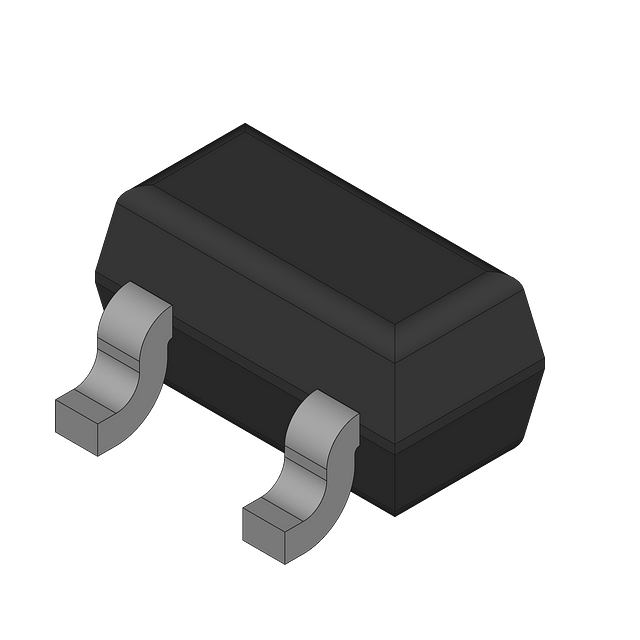

This NPN transistor features a collector-emitter breakdown voltage of 50V and a maximum collector current of 100mA. The device is packaged in a halogen-free and RoHS compliant SC-75 package, suitable for operating temperatures between -55°C and 150°C. The transistor has a minimum current gain of 120 and a maximum power dissipation of 200mW. It is available in quantities of 3000, packaged on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi DTC144TET1G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SC |
| Collector Emitter Breakdown Voltage | 50V |
| Collector-emitter Voltage-Max | 250mV |
| Halogen Free | Halogen Free |
| hFE Min | 120 |
| Lead Free | Lead Free |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Onsemi DTC144TET1G to view detailed technical specifications.
