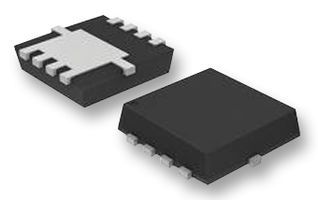

3-line EMI common mode filter with integrated ESD protection, featuring 1.3pF capacitance per line and a 100mA current rating. This bidirectional filter offers a maximum DC resistance of 8 Ohms and a 9V voltage rating. Packaged in a 2.2mm x 2.2mm x 0.75mm WDFN8 profile, it operates from -40°C to 85°C and is supplied on a 3000-piece tape and reel. The component is RoHS and Halogen Free compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi EMI2121MTTAG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi EMI2121MTTAG technical specifications.
| Capacitance | 1.3pF |
| Current Rating | 100mA |
| DC Resistance-Max | 8R |
| Depth | 2mm |
| Direction | Bidirectional |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 0.75mm |
| Lead Free | Lead Free |
| Length | 2.2mm |
| Max Current Rating | 100mA |
| Max DC Current | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Lines | 3 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EMI21 |
| Series Resistance | 8R |
| Termination | Flat |
| Voltage Rating | 9V |
| Width | 2.2mm |
| RoHS | Compliant |
