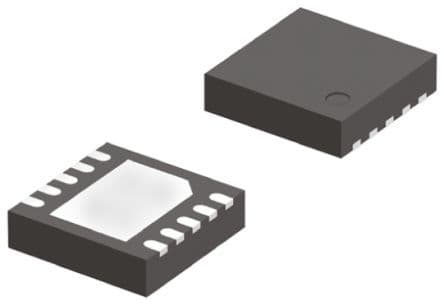

Unidirectional Transient Voltage Suppressor (TVS) diode offering 5V working voltage and 1A peak pulse current. Features 0.8pF capacitance and 15V clamping voltage, with a minimum breakdown voltage of 5.5V. Designed for ESD protection with a low leakage current of 1uA. Operates across a -55°C to 125°C temperature range. Packaged in a 10-pin UDFN (1mm x 2.5mm x 0.5mm) for surface-mount applications, supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi ESDR0524PMUTAG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi ESDR0524PMUTAG technical specifications.
| Capacitance | 0.8pF |
| Clamping Voltage | 15V |
| Depth | 1mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 2.5mm |
| Min Breakdown Voltage | 5.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 1uA |
| Number of Channels | 1 |
| Number of Lines | 4 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1A |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 5V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 1mm |
| Working Voltage | 5V |
| RoHS | Compliant |
