Technical Specifications
Onsemi FAN1086M33X technical specifications.
General
| Package/Case | TO-263-4 |
| Current Rating | 1.5A |
| Input Bias Current | 4mA |
| Lead Free | Lead Free |
| Max Input Voltage | 7.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Min Output Voltage | 3.3V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 800 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 72dB |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FAN1086M33X Datasheet
Download the complete datasheet for Onsemi FAN1086M33X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

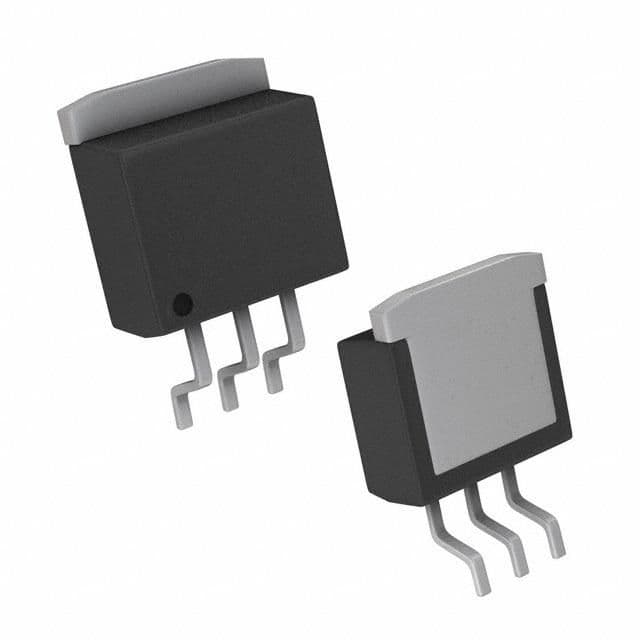

Product Images
