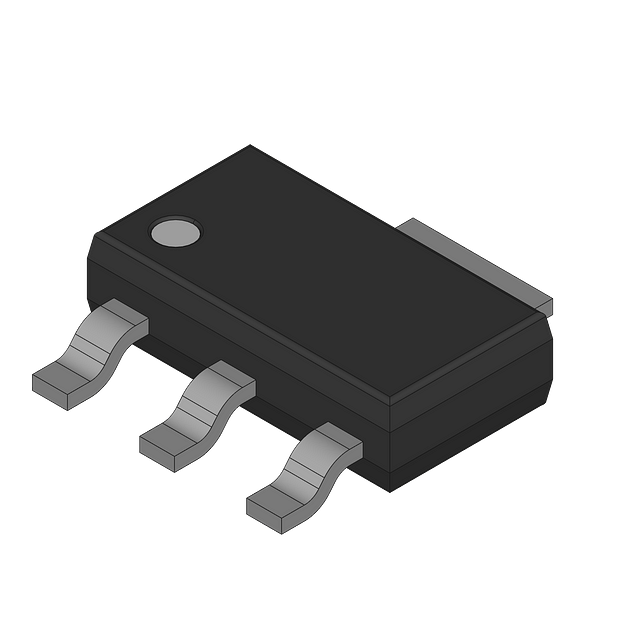

The FAN1086S33X is a single-output linear voltage regulator with a fixed output voltage of 3.3V and an output current of 1.5A. It is packaged in a TO-261-4 surface mount package and has a maximum operating temperature of 125°C. The device is lead-free and RoHS compliant. The FAN1086S33X has a power supply rejection ratio of 72dB and a maximum input voltage of 7.5V. It is suitable for use in a variety of applications requiring a stable 3.3V output voltage.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi FAN1086S33X datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-261-4 |
| Current Rating | 1.5A |
| Input Bias Current | 4mA |
| Lead Free | Lead Free |
| Max Input Voltage | 7.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Min Output Voltage | 3.3V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1.5A |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 72dB |
| RoHS Compliant | Yes |
| RoHS | Compliant |
