Technical Specifications
Onsemi FAN3100TMPX technical specifications.
General
| Fall Time | 9ns |
| Height | 0.95mm |
| Input Type | DIFFERENTIAL |
| Length | 2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Power Dissipation | 240mW |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 12V |
| Output Current | 3A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 30ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 500uA |
| Weight | 0.03g |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FAN3100TMPX Datasheet
Download the complete datasheet for Onsemi FAN3100TMPX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

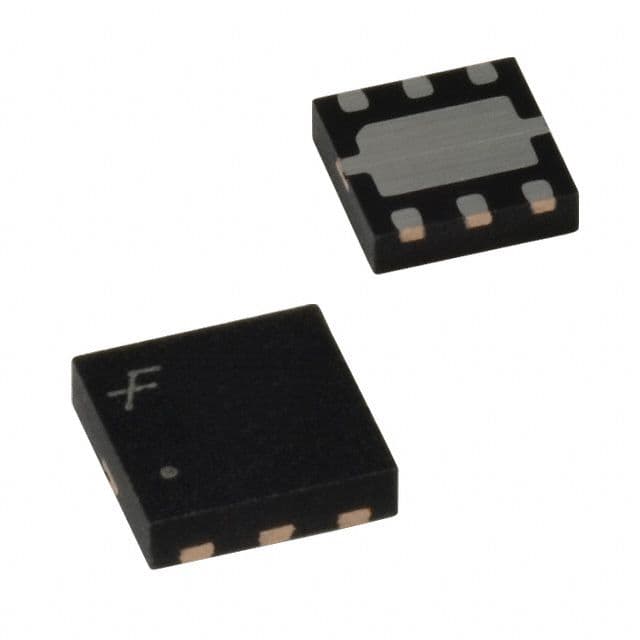

Product Images
