FAN3229CMPX

3A Dual Low-Side Gate Driver, CMOS, 30ns PD, 9ns FT

Onsemi

FAN3229CMPX

Name: FAN3229CMPX Onsemi
Brand: Onsemi
SKU: FAN3229CMPX

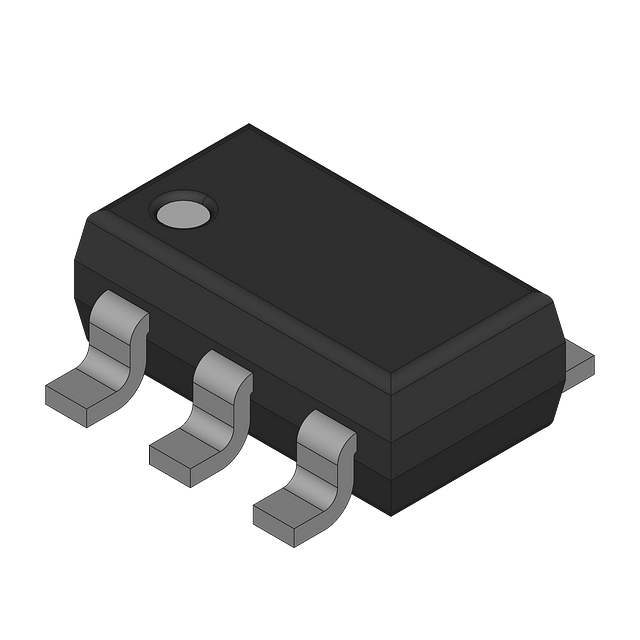

3A Dual Low-Side Gate Driver, CMOS, 30ns PD, 9ns FT

Dual low-side gate driver IC featuring 3A peak sink and 3A source current capability. Offers CMOS input with selectable inverting or non-inverting output configurations. Operates from a 4.5V to 18V supply voltage range, with a typical operating voltage of 12V. Achieves a fast 9ns fall time and 30ns propagation delay. Surface mountable in a compact 3mm x 3mm x 0.75mm module package, suitable for high-temperature operation up to 125°C.

PackageModule

Current1.05mA

MountingSurface Mount

Quick Jump:

Technical Specifications

Onsemi FAN3229CMPX technical specifications.

General

Package/Case	Module
Fall Time	9ns
Height	0.75mm
Lead Free	Lead Free
Length	3mm
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Output Current	3A
Max Supply Current	1.05mA
Max Supply Voltage	18V
Min Supply Voltage	4.5V
Mount	Surface Mount
Number of Drivers	2
Number of Outputs	2
Operating Supply Voltage	12V
Output Current	3A
Package Quantity	1
Packaging	Tape and Reel
Propagation Delay	30ns
Reach SVHC Compliant	No
RoHS Compliant	Yes
Supply Current	1.05mA
Weight	0.129g
Width	3mm
