Onsemi
FAN48632BUC33X
2.5 MHz, 2.0 A Pulsed-Load Synchronous TinyBoost™ Regulator with Bypass Mode for GSM PA Supply, 3000-REEL
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi FAN48632BUC33X technical specifications.
General
| Efficiency | 96% |
| Height | 0.378mm |
| Length | 1.78mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.35V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Output Voltage | 3.49V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5.5V |
| Output Current | 2A |
| Output Type | Fixed |
| Output Voltage | 3.49V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TinyBoost™ |
| Topology | Boost |
| Weight | 0.05866667g |
| Width | 1.78mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FAN48632BUC33X Datasheet
Download the complete datasheet for Onsemi FAN48632BUC33X to view detailed technical specifications.
No datasheet is available for this part.

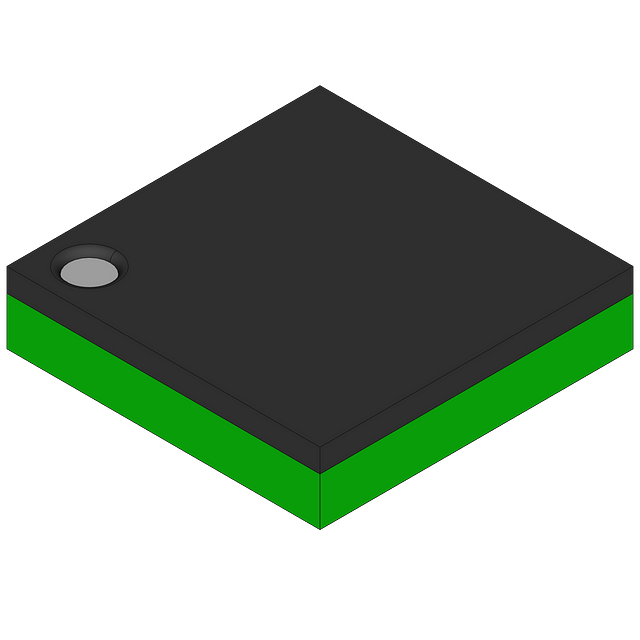

Product Images
