Digitally programmable DC/DC controller and regulator, this 5A, 2.4MHz TinyBuck® regulator offers a 2.5V to 5.5V input voltage range and a 800mV to 1.43V output voltage range. Featuring a 5A maximum output current and 80% efficiency, it operates with a 60µA supply current. The surface mount device is packaged on a 3000-piece tape and reel, with dimensions of 1.62mm x 4mm x 0.378mm and a weight of 0.073g. Operating temperature spans from -40°C to 85°C.
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi FAN53555UC13X technical specifications.
General
Efficiency
80%
Height
0.378mm
Length
1.62mm
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Output Voltage
1.43V
Min Output Voltage
800mV
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Current
60uA
Operating Supply Voltage
5.5V
Output Configuration
Positive
Output Current
5A
Output Type
Fixed
Output Voltage
1.15V
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
TinyBuck®
Synchronous Rectifier
Yes
Weight
0.073g
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Onsemi FAN53555UC13X Datasheet
Download the complete datasheet for Onsemi FAN53555UC13X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

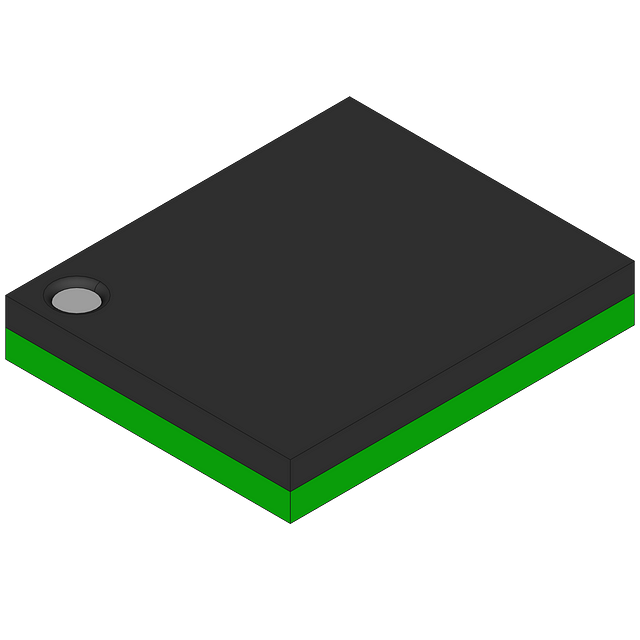

Product Images
