Synchronous Buck Regulator, 1.1V fixed output voltage, capable of 1A maximum output current. Features 92% efficiency and operates with input voltages from 2.3V to 5.5V. This surface mount component offers a 6MHz switching frequency and is supplied on a 3000-piece tape and reel. Operating temperature range is -40°C to 85°C.
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi FAN53611AUC11X technical specifications.
General
| Efficiency | 92% |
| Height | 0.378mm |
| Lead Free | Lead Free |
| Length | 0.86mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 1.1V |
| Min Output Voltage | 1.1V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 1.1V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Weight | 0.045g |
| Width | 1.16mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FAN53611AUC11X Datasheet
Download the complete datasheet for Onsemi FAN53611AUC11X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

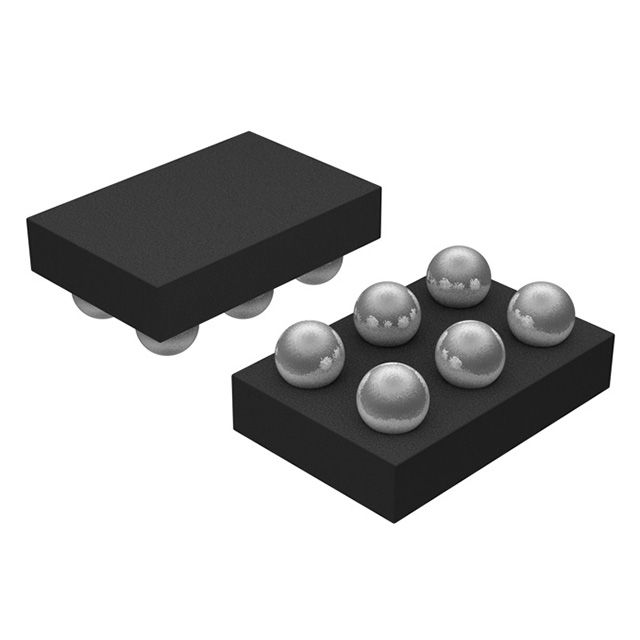

Product Images
