Synchronous buck regulator operating at 6MHz, delivering up to 600mA output current with a fixed 1.9V output voltage. Features 92% efficiency and a wide input voltage range of 2.3V to 5.5V. This surface mount device is housed in a compact 0.97mm x 1.37mm x 0.378mm WL-CSP package, ideal for space-constrained applications. Operating temperature range spans -40°C to 85°C, with RoHS compliance and tape and reel packaging for 3000 units.
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi FAN5361UC19X technical specifications.
General
Efficiency
92%
Height
0.378mm
Length
0.97mm
Max Input Voltage
5.5V
Min Input Voltage
2.3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
600mA
Max Output Voltage
1.9V
Min Output Voltage
1.9V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
5.5V
Output Configuration
Positive
Output Current
600mA
Output Type
Fixed
Output Voltage
1.9V
Package Quantity
3000
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
TinyBuck™
Synchronous Rectifier
Yes
Weight
0.045g
Width
1.37mm
Compliance
RoHS
Compliant
Datasheet
Onsemi FAN5361UC19X Datasheet
Download the complete datasheet for Onsemi FAN5361UC19X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

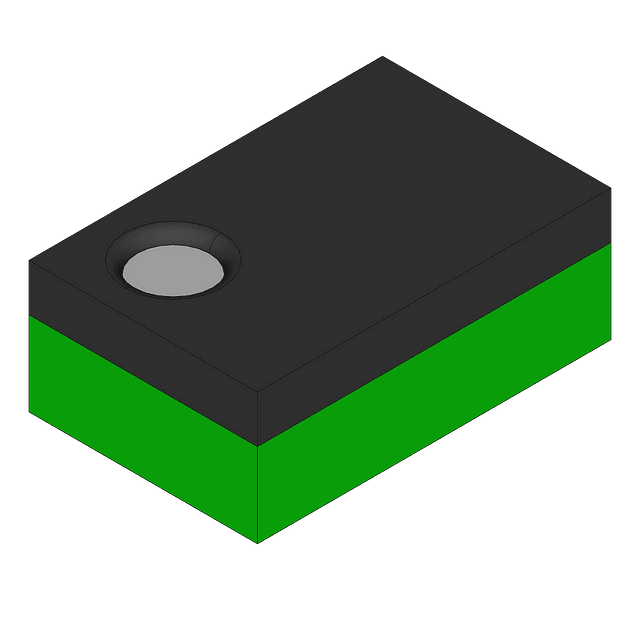

Product Images
