Single-cell Li-ion switching charger and USB-OTG boost regulator, this power management IC supports a battery pack voltage of 4.5V. Features include a max charge current of 1.45A, max output voltage of 4.4V, and an output current of 550mA. Operating across a wide temperature range of -40°C to 85°C, it offers I2C and USB interfaces, with fault protection for over voltage, over temperature, and short circuit. This surface mount component, packaged on tape and reel, is lead-free and RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi FAN54015UCX technical specifications.
General
| Battery Pack Voltage | 4.5V |
| Fault Protection | Over Voltage, Over Temperature, Short Circuit |
| Height | 0.378mm |
| Interface | I2C, USB |
| Lead Free | Lead Free |
| Length | 1.96mm |
| Max Charge Current | 1.45A |
| Max Input Voltage | 20V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.45A |
| Max Output Voltage | 4.4V |
| Min Output Voltage | 3.5V |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Cells | 1 |
| Output Current | 550mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Weight | 0.073g |
| Width | 1.87mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FAN54015UCX Datasheet
Download the complete datasheet for Onsemi FAN54015UCX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

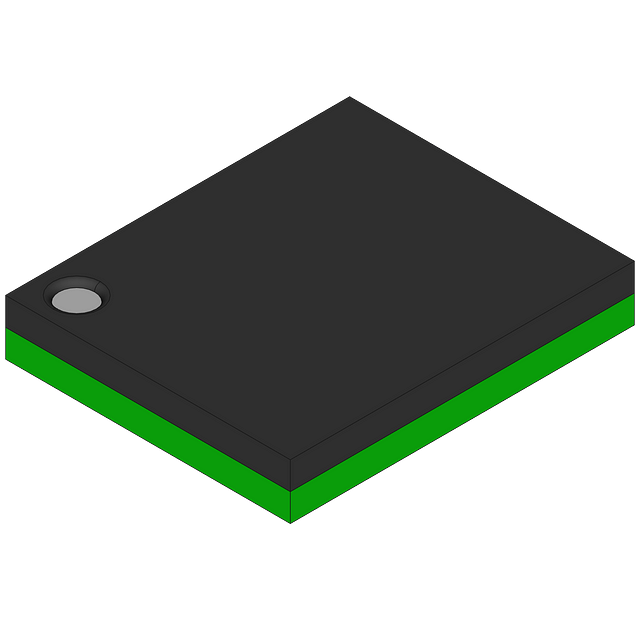

Product Images
