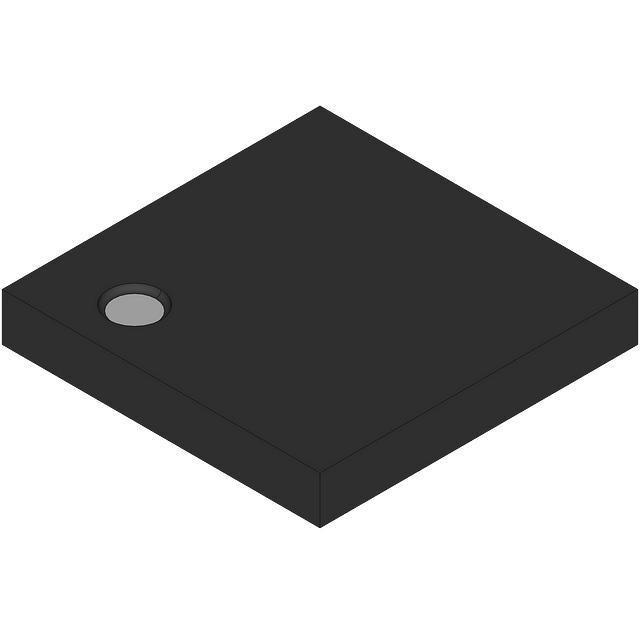

The FAN5609MPX is a 4-channel charge pump from Onsemi, operating within a temperature range of -40°C to 85°C. It features a maximum supply current of 2uA and is packaged in a tape and reel format for surface mount applications. This device is compliant with RoHS regulations and is designed for use in lead-free environments.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi FAN5609MPX datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Frequency | 1MHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 2uA |
| Mount | Surface Mount |
| Number of Outputs | 4 |
| Output Voltage | 6V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Topology | Charge Pump |
| RoHS | Compliant |
Download the complete datasheet for Onsemi FAN5609MPX to view detailed technical specifications.
