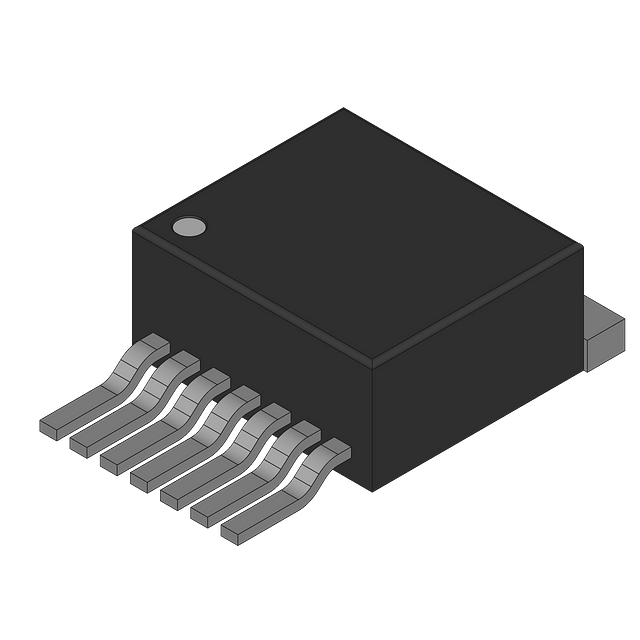

N-Channel MOSFET, 40V Drain-Source Breakdown Voltage, 219A Continuous Drain Current, and 2.4mΩ Drain-Source Resistance. Features a 17ns turn-on delay and 17ns fall time, with 7.3nF input capacitance. This surface mount component operates from -55°C to 175°C with a maximum power dissipation of 214W. Packaged on an 800-piece tape and reel in a TO-263-8 package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi FDB024N04AL7 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi FDB024N04AL7 technical specifications.
| Package/Case | TO-263-8 |
| Continuous Drain Current (ID) | 219A |
| Drain to Source Breakdown Voltage | 40V |
| Drain to Source Resistance | 2mR |
| Drain to Source Voltage (Vdss) | 40V |
| Element Configuration | Single |
| Fall Time | 17ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 9.4mm |
| Input Capacitance | 7.3nF |
| Length | 10.8mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 214W |
| Mount | Surface Mount |
| Package Quantity | 800 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 214W |
| Radiation Hardening | No |
| Rds On Max | 2.4mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerTrench® |
| Threshold Voltage | 1V |
| Turn-Off Delay Time | 71ns |
| Turn-On Delay Time | 17ns |
| Weight | 1.312g |
| Width | 4.3mm |
| RoHS | Compliant |
