P-Channel PowerTrench® MOSFET, logic-level, featuring a 60V drain-source breakdown voltage and a continuous drain current of 3A. This surface-mount component offers a low drain-source on-resistance of 105mΩ at a nominal gate-source voltage of -1.6V. It operates within a temperature range of -55°C to 150°C with a maximum power dissipation of 1.6W. The SOT-23-6 package is supplied on a 3000-piece tape and reel.
PackageSOT-23-6
Voltage60V
Current2A
Current Rating-3A
Quick Jump:
Technical Specifications
Onsemi FDC5614P technical specifications.
General
Package/Case
SOT-23-6
Continuous Drain Current (ID)
3A
Current
2A
Current Rating
-3A
Drain to Source Breakdown Voltage
-60V
Drain to Source Resistance
105mR
Drain to Source Voltage (Vdss)
60V
Drain-source On Resistance-Max
105MR
Fall Time
10ns
Gate to Source Voltage (Vgs)
20V
Height
1mm
Input Capacitance
759pF
Lead Free
Lead Free
Length
3mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Mount
Surface Mount
Nominal Vgs
-1.6V
Number of Channels
1
Number of Elements
1
Package Quantity
3000
Packaging
Tape and Reel
Polarity
P-CHANNEL
Power Dissipation
1.6W
Radiation Hardening
No
Rds On Max
105mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PowerTrench®
Threshold Voltage
-1.6V
Turn-Off Delay Time
19ns
Turn-On Delay Time
7ns
Voltage
60V
DC Rated Voltage
-60V
Width
1.7mm
Compliance
RoHS
Compliant
Datasheet
Onsemi FDC5614P Datasheet
Download the complete datasheet for Onsemi FDC5614P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

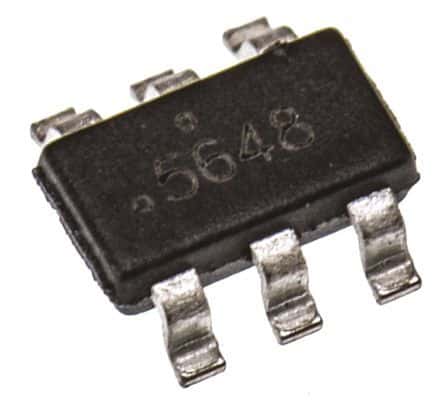

Product Images
