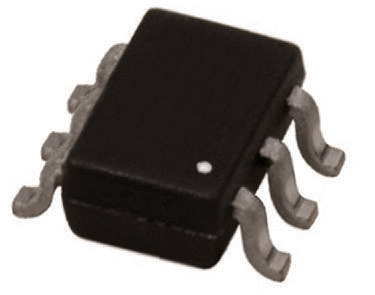

Dual N-Channel PowerTrench® MOSFET, logic level, 30V drain-source breakdown voltage, 2.5A continuous drain current, and 95mΩ maximum drain-source on-resistance. This surface mount component features a SOT-23-6 package, 1.8V nominal gate-source voltage, and a maximum power dissipation of 960mW. Operating temperature range is -55°C to 150°C, with typical turn-on delay of 6ns and turn-off delay of 12ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi FDC6561AN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-23-6 |
| Continuous Drain Current (ID) | 2.5A |
| Current | 24A |
| Current Rating | 2.5A |
| Drain to Source Breakdown Voltage | 30V |
| Drain to Source Resistance | 95mR |
| Drain to Source Voltage (Vdss) | 30V |
| Drain-source On Resistance-Max | 95mR |
| Dual Supply Voltage | 30V |
| Fall Time | 10ns |
| FET Type | 2 N-Channel |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1mm |
| Input Capacitance | 220pF |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 960mW |
| Mount | Surface Mount |
| Nominal Vgs | 1.8V |
| Number of Elements | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 900mW |
| Rds On Max | 95mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerTrench® |
| Turn-Off Delay Time | 12ns |
| Turn-On Delay Time | 6ns |
| Voltage | 30V |
| DC Rated Voltage | 30V |
| Width | 1.7mm |
| RoHS | Compliant |
Download the complete datasheet for Onsemi FDC6561AN to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
These are design resources that include the Onsemi FDC6561AN
Fairchild Semiconductor PDN P246A announces the discontinuation of various products with no sales history for 24 months, effective May 2012, with suggested replacements.
