Dual N & P Channel JFET, surface mount, 25V drain-source breakdown voltage, 450mΩ drain-source on-resistance, 410mA continuous drain current. Features 8ns fall time and 55ns turn-off delay. Operates from -55°C to 150°C, with 300mW max power dissipation. Packaged in tape and reel, 3000 units per reel.
PackageSC
Current Rating500mA
MountingSurface Mount
PolarityP-CHANNEL
Quick Jump:
Technical Specifications
Onsemi FDG6321C technical specifications.
General
Package/Case
SC
Continuous Drain Current (ID)
410mA
Current Rating
500mA
Drain to Source Breakdown Voltage
25V
Drain to Source Resistance
450mR
Drain to Source Voltage (Vdss)
25V
Drain-source On Resistance-Max
450mR
Fall Time
8ns
FET Type
N and P-Channel
Gate to Source Voltage (Vgs)
8V
Height
1.1mm
Input Capacitance
50pF
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
300mW
Mount
Surface Mount
Number of Channels
2
Number of Elements
2
Package Quantity
3000
Packaging
Tape and Reel
Polarity
P-CHANNEL
Power Dissipation
300mW
Radiation Hardening
No
Rds On Max
450mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Threshold Voltage
800mV
Turn-Off Delay Time
55ns
Weight
0.028g
Compliance
RoHS
Compliant
Datasheet
Onsemi FDG6321C Datasheet
Download the complete datasheet for Onsemi FDG6321C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

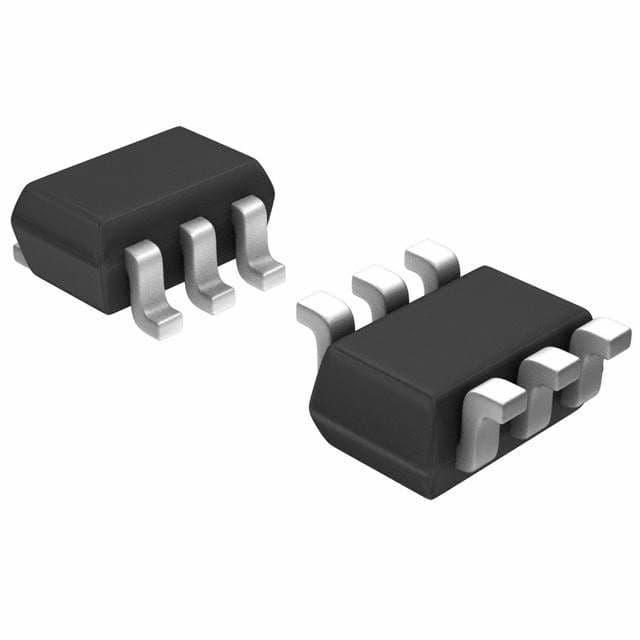

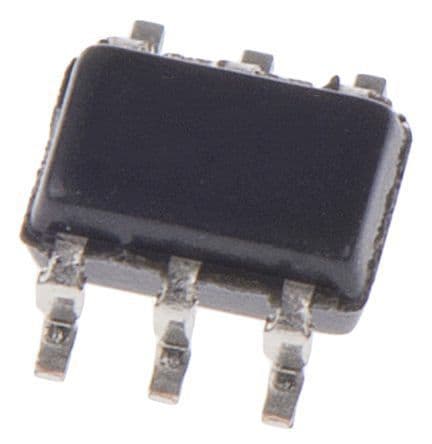

Product Images
