N-channel Power MOSFET featuring 500V drain-source breakdown voltage and 44A continuous drain current. This single-element transistor offers a low 120mΩ drain-source on-resistance and a maximum power dissipation of 750W. Designed for through-hole mounting in a TO-247 package, it operates within a temperature range of -55°C to 175°C and is RoHS compliant. Key switching characteristics include a 16ns turn-on delay and 45ns turn-off delay.
PackageTO-247
Current Rating44A
MountingThrough Hole
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Onsemi FDH44N50 technical specifications.
General
| Package/Case | TO-247 |
| Continuous Drain Current (ID) | 44A |
| Current Rating | 44A |
| Drain to Source Breakdown Voltage | 500V |
| Drain to Source Resistance | 120mR |
| Drain to Source Voltage (Vdss) | 500V |
| Drain-source On Resistance-Max | 120mR |
| Dual Supply Voltage | 500V |
| Element Configuration | Single |
| Fall Time | 79ns |
| Gate to Source Voltage (Vgs) | 30V |
| Height | 20.82mm |
| Input Capacitance | 5.335nF |
| Lead Free | Lead Free |
| Length | 15.87mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 750W |
| Mount | Through Hole |
| Nominal Vgs | 3.15V |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package Quantity | 150 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 750W |
| Radiation Hardening | No |
| Rds On Max | 120mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Through Hole |
| Threshold Voltage | 3.15V |
| Turn-Off Delay Time | 45ns |
| Turn-On Delay Time | 16ns |
| DC Rated Voltage | 500V |
| Weight | 6.39g |
| Width | 4.82mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FDH44N50 Datasheet
Download the complete datasheet for Onsemi FDH44N50 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

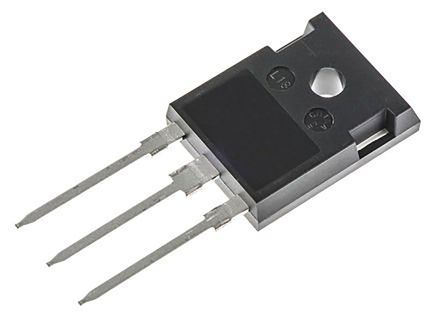

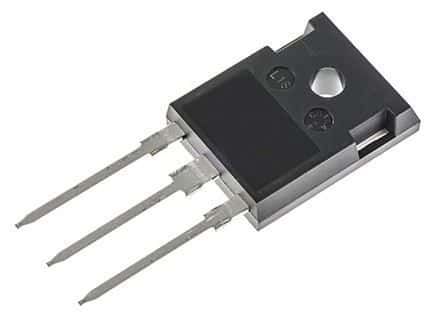

Product Images
