FDMC6296

Datasheet

30V N-Channel Power MOSFET, 11.5A, 10.5mR Rds On, SM

Onsemi

FDMC6296

Name: FDMC6296 Onsemi
Brand: Onsemi
SKU: FDMC6296

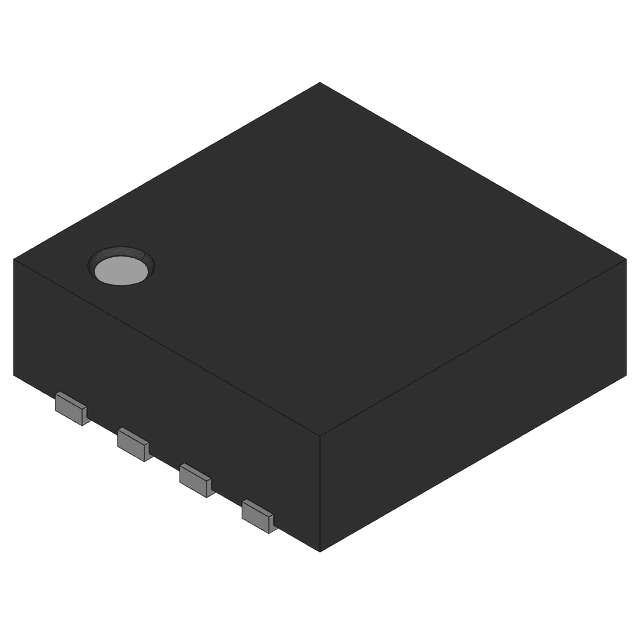

30V N-Channel Power MOSFET, 11.5A, 10.5mR Rds On, SM

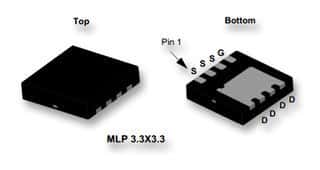

Single N-Channel Logic-Level Power Trench MOSFET featuring 30V drain-to-source breakdown voltage and 10.5mΩ Rds On at 1.8V nominal Vgs. This surface mount component offers 11.5A continuous drain current and 2.1W maximum power dissipation, operating from -55°C to 150°C. With a 3.3x3.3mm MLP package, it includes 2.141nF input capacitance and 10ns turn-on delay. Packaged in tape and reel for 3000 units.

MountingSurface Mount

PolarityN-CHANNEL

Power2.1W

Quick Jump:

Technical Specifications

Onsemi FDMC6296 technical specifications.

General

Continuous Drain Current (ID)	11.5A
Drain to Source Breakdown Voltage	30V
Drain to Source Resistance	10.5mR
Drain to Source Voltage (Vdss)	30V
Element Configuration	Single
Gate to Source Voltage (Vgs)	20V
Height	0.75mm
Input Capacitance	2.141nF
Length	3.3mm
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Power Dissipation	2.1W
Mount	Surface Mount
Nominal Vgs	1.8V
Package Quantity	3000
Packaging	Tape and Reel
Polarity	N-CHANNEL
Power Dissipation	2.1W
Rds On Max	10.5mR
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	PowerTrench®
Threshold Voltage	1.8V
Turn-Off Delay Time	27ns
Turn-On Delay Time	10ns
Weight	0.16533333g
Width	3.3mm
