N-Channel Power Trench® MOSFET, 30V drain-source breakdown voltage, 16A continuous drain current, and 8.5mΩ Rds On. Features include a 3.3mm x 3.3mm x 0.75mm surface mount package, 1.68nF input capacitance, and 29W maximum power dissipation. Operates from -55°C to 150°C, with turn-on delay of 9ns and fall time of 3ns. RoHS compliant.
MountingSurface Mount
PolarityN-CHANNEL
Power2.3W
Quick Jump:
Technical Specifications
Onsemi FDMC7692 technical specifications.
General
| Continuous Drain Current (ID) | 16A |
| Drain to Source Breakdown Voltage | 30V |
| Drain to Source Resistance | 9.5mR |
| Drain to Source Voltage (Vdss) | 30V |
| Element Configuration | Single |
| Fall Time | 3ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 0.75mm |
| Input Capacitance | 1.68nF |
| Length | 3.3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 29W |
| Mount | Surface Mount |
| Nominal Vgs | 1.9V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 2.3W |
| Rds On Max | 8.5mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerTrench® |
| Threshold Voltage | 1.9V |
| Turn-Off Delay Time | 21ns |
| Turn-On Delay Time | 9ns |
| Weight | 0.2g |
| Width | 3.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FDMC7692 Datasheet
Download the complete datasheet for Onsemi FDMC7692 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

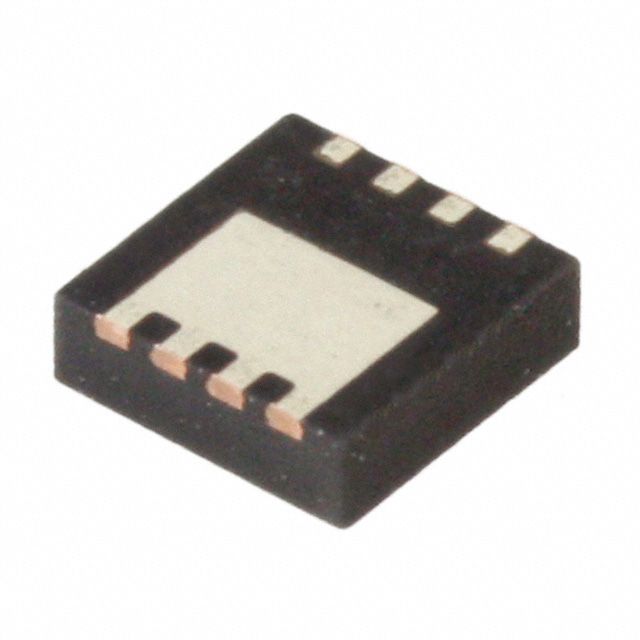

Product Images
