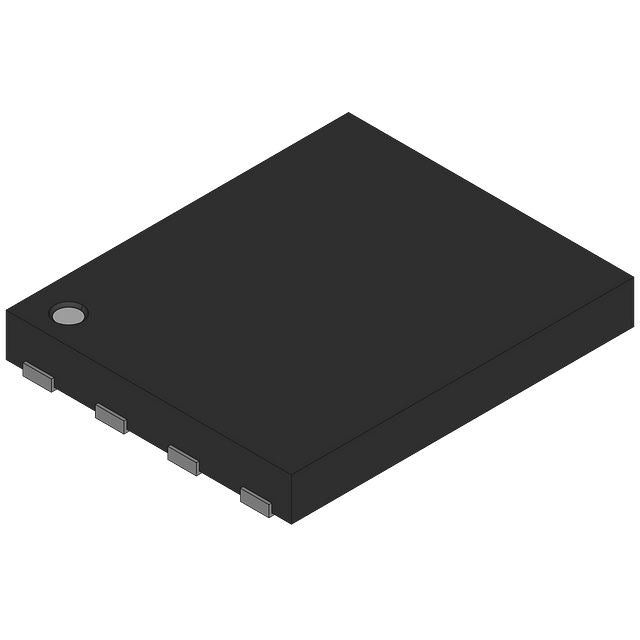

The FDMC86106LZ is a surface mount N-CHANNEL Power MOSFET with a maximum operating temperature range of -55°C to 150°C. It has a maximum power dissipation of 19W and a drain to source breakdown voltage of 100V. The device features a drain to source resistance of 103mR and a gate to source voltage of 20V. It measures 3.3mm in length and 0.75mm in height, with a width of 3.3mm. The FDMC86106LZ is packaged in tape and reel quantities of 3000 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi FDMC86106LZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi FDMC86106LZ technical specifications.
| Continuous Drain Current (ID) | 7.5A |
| Drain to Source Breakdown Voltage | 100V |
| Drain to Source Resistance | 103mR |
| Drain to Source Voltage (Vdss) | 100V |
| Fall Time | 1.4ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 0.75mm |
| Input Capacitance | 310pF |
| Length | 3.3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 19W |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 19W |
| Radiation Hardening | No |
| Rds On Max | 103mR |
| Series | PowerTrench® |
| Turn-Off Delay Time | 10ns |
| Turn-On Delay Time | 4.5ns |
| Width | 3.3mm |
| RoHS | Compliant |
