N-Channel Power Trench® MOSFET, 80V Vdss, 20A continuous drain current, and 23mΩ Rds On. This single-channel, surface-mount component features a 3.1V threshold voltage, 41W max power dissipation, and operates from -55°C to 150°C. It offers fast switching with turn-on delay of 8ns and fall time of 4ns. Packaged on a 3000-piece tape and reel, this RoHS compliant MOSFET is designed for efficient power management applications.
MountingSurface Mount
PolarityN-CHANNEL
Power41W
Quick Jump:
Technical Specifications
Onsemi FDMC86324 technical specifications.
General
| Continuous Drain Current (ID) | 20A |
| Drain to Source Breakdown Voltage | 80V |
| Drain to Source Resistance | 23mR |
| Drain to Source Voltage (Vdss) | 80V |
| Element Configuration | Single |
| Fall Time | 4ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1.05mm |
| Input Capacitance | 965pF |
| Length | 3.3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 41W |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 41W |
| Radiation Hardening | No |
| Rds On Max | 23mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerTrench® |
| Threshold Voltage | 3.1V |
| Turn-Off Delay Time | 14ns |
| Turn-On Delay Time | 8ns |
| Weight | 0.03213g |
| Width | 3.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FDMC86324 Datasheet
Download the complete datasheet for Onsemi FDMC86324 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

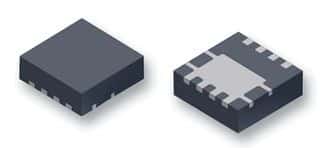

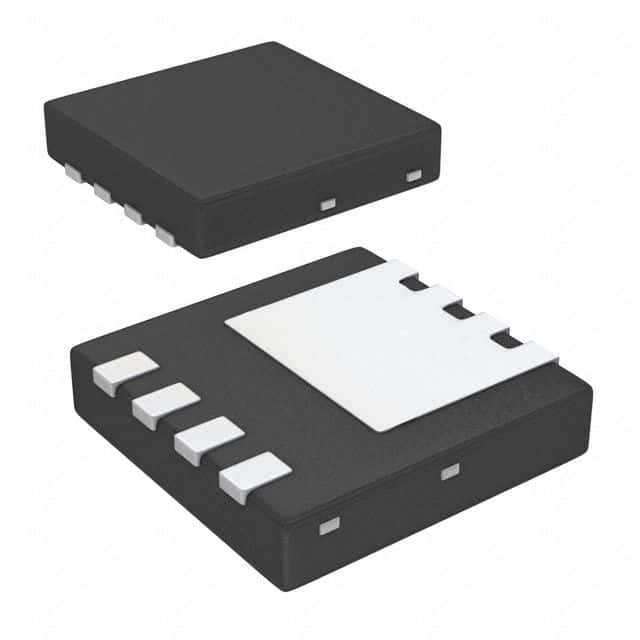

Product Images
