N-Channel Power Trench® MOSFET, 30V drain-source breakdown voltage, 15A continuous drain current, and 19mΩ maximum drain-source on-resistance. Features a 1.9V nominal gate-source voltage and 1.9V threshold voltage. Surface mount component with 3.3mm length, 3.3mm width, and 0.75mm height, supplied on a 3000-piece tape and reel. Operates from -55°C to 150°C with 18W maximum power dissipation.
MountingSurface Mount
PolarityN-CHANNEL
Power2.3W
Quick Jump:
Technical Specifications
Onsemi FDMC8884 technical specifications.
General
| Continuous Drain Current (ID) | 15A |
| Drain to Source Breakdown Voltage | 30V |
| Drain to Source Resistance | 19mR |
| Drain to Source Voltage (Vdss) | 30V |
| Drain-source On Resistance-Max | 19MR |
| Element Configuration | Single |
| Fall Time | 2ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 0.75mm |
| Input Capacitance | 685pF |
| Lead Free | Lead Free |
| Length | 3.3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 18W |
| Mount | Surface Mount |
| Nominal Vgs | 1.9V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 2.3W |
| Radiation Hardening | No |
| Rds On Max | 19mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerTrench® |
| Threshold Voltage | 1.9V |
| Turn-Off Delay Time | 15ns |
| Turn-On Delay Time | 6ns |
| Weight | 0.2g |
| Width | 3.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FDMC8884 Datasheet
Download the complete datasheet for Onsemi FDMC8884 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

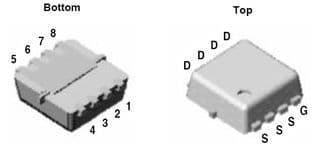

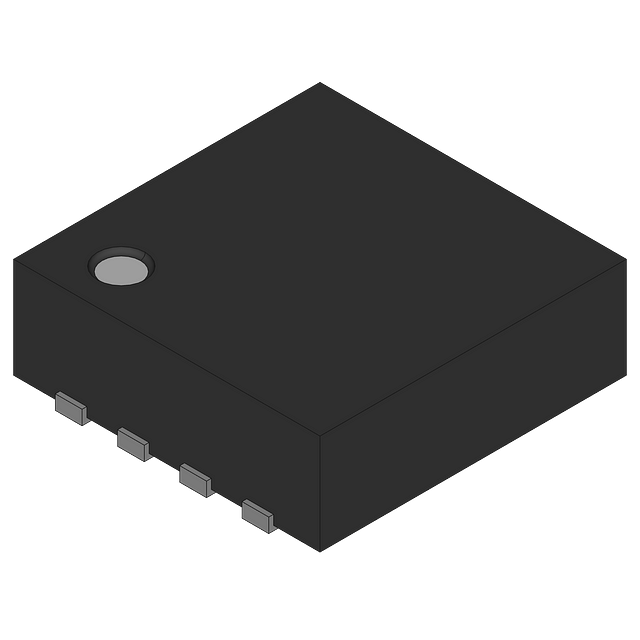

Product Images
