Asymmetric dual N-channel MOSFET power stage, 25V Vds, 26A continuous drain current, and 5.6mΩ maximum drain-source on-resistance. Features include 1.68nF input capacitance, 3.2ns fall time, and 31ns turn-off delay. Operates from -55°C to 150°C with 2.5W power dissipation. Surface mountable in a 5mm x 6mm x 1.05mm package, supplied on tape and reel. RoHS compliant.
MountingSurface Mount
PolarityN-CHANNEL
Power2.5W
Quick Jump:
Technical Specifications
Onsemi FDMS3602S technical specifications.
General
| Continuous Drain Current (ID) | 26A |
| Drain to Source Breakdown Voltage | 25V |
| Drain to Source Resistance | 5.6mR |
| Drain to Source Voltage (Vdss) | 25V |
| Drain-source On Resistance-Max | 5.6MR |
| Fall Time | 3.2ns |
| FET Type | 2 N-Channel |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1.05mm |
| Input Capacitance | 1.68nF |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1W |
| Mount | Surface Mount |
| Nominal Vgs | 1.8V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 2.5W |
| Radiation Hardening | No |
| Rds On Max | 5.6mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerTrench® |
| Turn-Off Delay Time | 31ns |
| Weight | 0.09g |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FDMS3602S Datasheet
Download the complete datasheet for Onsemi FDMS3602S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

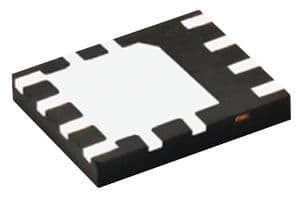

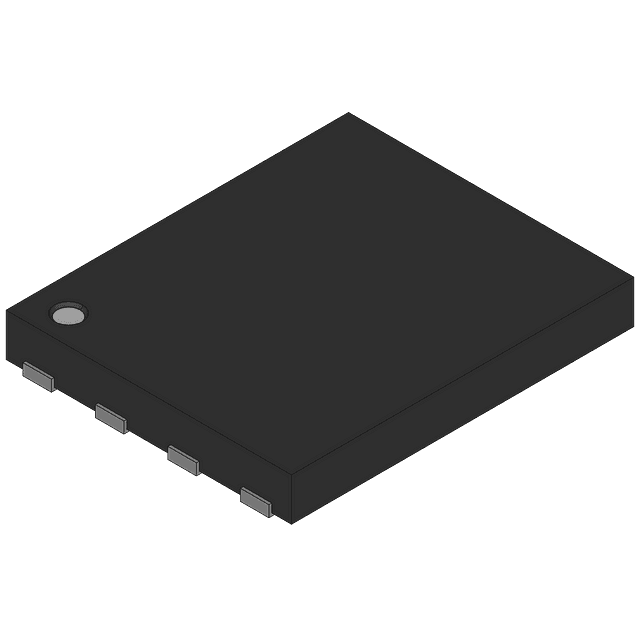

Product Images
