N-Channel MOSFET, 100V Drain-Source Breakdown Voltage, 49A Continuous Drain Current, and 14.8mΩ Max Drain-Source On-Resistance. This surface-mount component features a 3.5V nominal gate-source voltage and a 3.5V threshold voltage. With a maximum power dissipation of 104W and operating temperatures from -55°C to 150°C, it offers fast switching with a 6ns fall time. Packaged on a 3000-piece tape and reel, this RoHS compliant device is designed for efficient power management.
MountingSurface Mount
PolarityN-CHANNEL
Power2.5W
Quick Jump:
Technical Specifications
Onsemi FDMS3662 technical specifications.
General
| Continuous Drain Current (ID) | 49A |
| Drain to Source Breakdown Voltage | 100V |
| Drain to Source Resistance | 14.8mR |
| Drain to Source Voltage (Vdss) | 100V |
| Drain-source On Resistance-Max | 14.8MR |
| Element Configuration | Single |
| Fall Time | 6ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1.05mm |
| Input Capacitance | 4.62nF |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 104W |
| Mount | Surface Mount |
| Nominal Vgs | 3.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 2.5W |
| Radiation Hardening | No |
| Rds On Max | 14.8mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerTrench® |
| Threshold Voltage | 3.5V |
| Turn-Off Delay Time | 32ns |
| Turn-On Delay Time | 25ns |
| Weight | 0.0681g |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FDMS3662 Datasheet
Download the complete datasheet for Onsemi FDMS3662 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

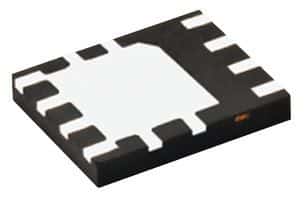

Product Images
