ONSEMI

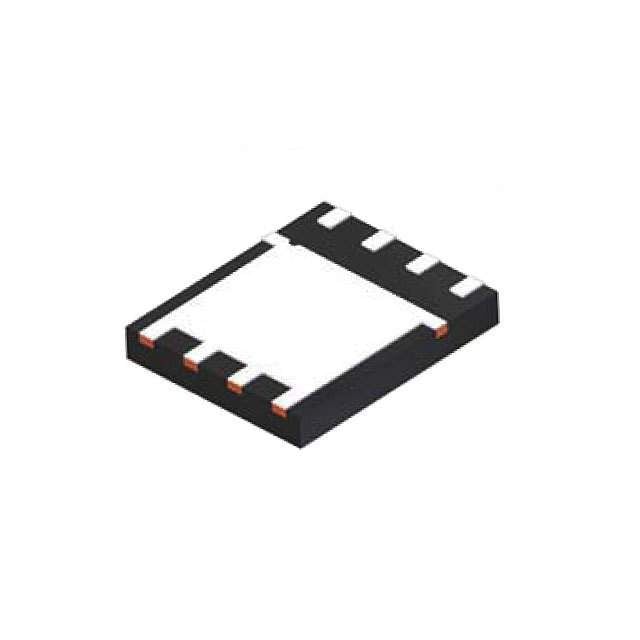

FDMS5352

N-Ch MOSFET 60V 6.7mR 13.6A Surface Mount

Onsemi

FDMS5352

Name: FDMS5352 Onsemi
Brand: Onsemi
SKU: FDMS5352

N-Ch MOSFET 60V 6.7mR 13.6A Surface Mount

N-Channel Power Trench® MOSFET, 60V Drain-Source Breakdown Voltage, 6.7mΩ Max Drain-Source On Resistance. Features 49A continuous drain current, 104W max power dissipation, and 1.8V threshold voltage. Surface mount package with 1.05mm height, 5mm length, and 6mm width. Operates from -55°C to 150°C, with 7ns fall time and 19ns turn-on delay. RoHS compliant.

MountingSurface Mount

PolarityN-CHANNEL

Power2.5W

Quick Jump:

Technical Specifications

Onsemi FDMS5352 technical specifications.

General

Continuous Drain Current (ID)	13.6A
Drain to Source Breakdown Voltage	60V
Drain to Source Resistance	6.7mR
Drain to Source Voltage (Vdss)	60V
Drain-source On Resistance-Max	6.7MR
Element Configuration	Single
Fall Time	7ns
Gate to Source Voltage (Vgs)	20V
Height	1.05mm
Input Capacitance	6.94nF
Lead Free	Lead Free
Length	5mm
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Power Dissipation	104W
Mount	Surface Mount
Number of Elements	1
Package Quantity	1
Packaging	Tape and Reel
Polarity	N-CHANNEL
Power Dissipation	2.5W
Radiation Hardening	No
Rds On Max	6.7mR
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	PowerTrench®
Threshold Voltage	1.8V
Turn-Off Delay Time	58ns
Turn-On Delay Time	19ns
Weight	0.0681g
Width	6mm
