N-Channel MOSFET, 100V Drain-Source Breakdown Voltage, 7.5mΩ Max Drain-Source On-Resistance, and 60A Continuous Drain Current. Features include a 150°C max operating temperature, 3.2W max power dissipation, and surface mount packaging. This component offers 14ns turn-on delay and 25ns turn-off delay, with an input capacitance of 3.135nF. It is RoHS compliant and lead-free, supplied on a 3000-piece tape and reel.
Resistance7.5MR
MountingSurface Mount
PolarityN-CHANNEL
Power125W
Quick Jump:
Technical Specifications
Onsemi FDMS86101DC technical specifications.
General
| Continuous Drain Current (ID) | 14.5A |
| Drain to Source Breakdown Voltage | 100V |
| Drain to Source Resistance | 7.5mR |
| Drain to Source Voltage (Vdss) | 100V |
| Drain-source On Resistance-Max | 7.5MR |
| Element Configuration | Single |
| Fall Time | 5.5ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 1.05mm |
| Input Capacitance | 3.135nF |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 3.2W |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 125W |
| Radiation Hardening | No |
| Rds On Max | 7.5mR |
| Resistance | 7.5MR |
| RoHS Compliant | Yes |
| Series | Dual Cool™, PowerTrench® |
| Turn-Off Delay Time | 25ns |
| Turn-On Delay Time | 14ns |
| Weight | 0.09g |
| Width | 5.85mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FDMS86101DC Datasheet
Download the complete datasheet for Onsemi FDMS86101DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

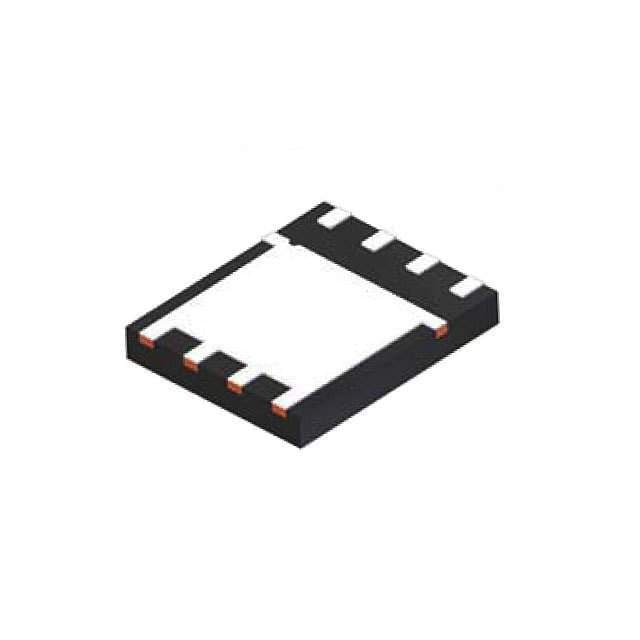

Product Images
