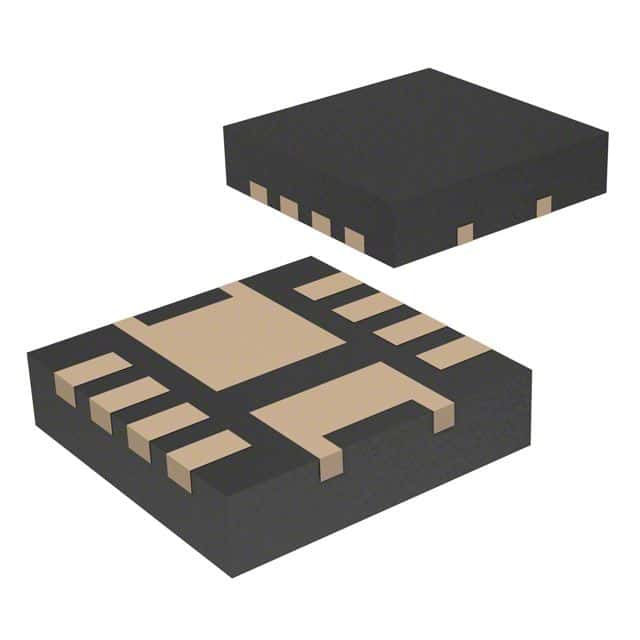

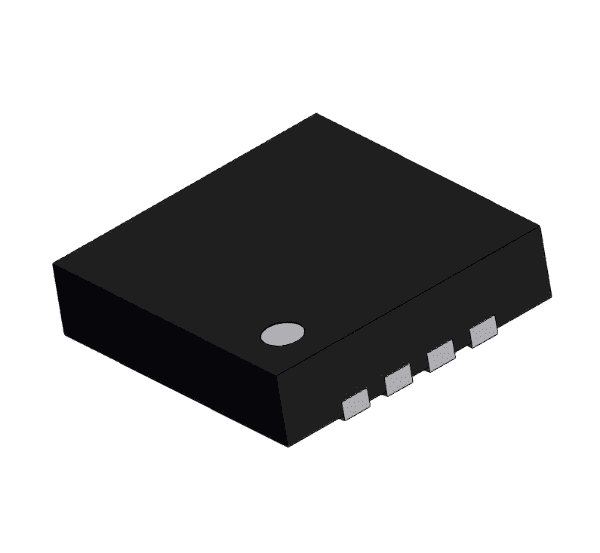

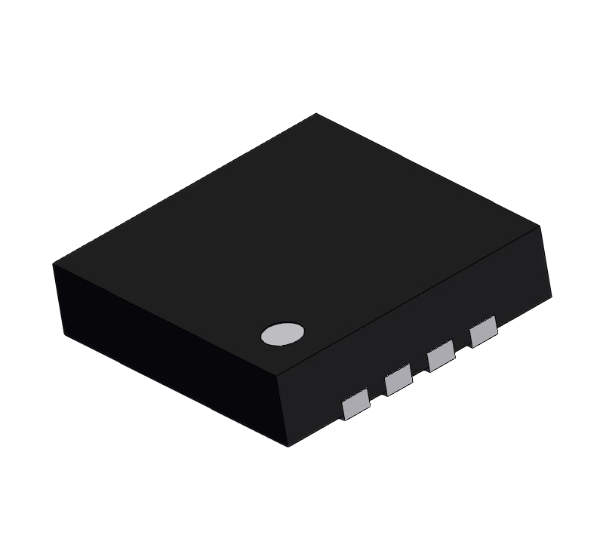

N-Channel Power MOSFET featuring 25V Drain to Source Breakdown Voltage and 60A Continuous Drain Current. Offers low 1.2mΩ Drain to Source Resistance, ideal for high-efficiency power applications. Surface mount design with a compact 3.4mm x 3.4mm footprint and 0.8mm height. Operates across a wide temperature range from -55°C to 150°C, with fast switching characteristics including a 4ns fall time. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi FDPC8011S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Continuous Drain Current (ID) | 60A |
| Drain to Source Breakdown Voltage | 25V |
| Drain to Source Resistance | 1.2mR |
| Drain to Source Voltage (Vdss) | 25V |
| Fall Time | 4ns |
| Gate to Source Voltage (Vgs) | 12V |
| Height | 0.8mm |
| Input Capacitance | 1.24nF |
| Lead Free | Lead Free |
| Length | 3.4mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2W |
| Mount | Surface Mount |
| Nominal Vgs | 1.4V |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 2W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | 1.4V |
| Turn-Off Delay Time | 38ns |
| Weight | 0.192g |
| Width | 3.4mm |
| RoHS | Compliant |
