Dual N-Channel MOSFET, 20V Vds, 6.5A ID, 30mΩ Rds On Max. Features 2.5V specified PowerTrench® technology for enhanced performance. Surface mount SOIC package with 2500 units per reel. Operating temperature range from -55°C to 150°C, with 2W power dissipation. Includes fast switching times with 8ns turn-on and 15ns turn-off delays.
PackageSOIC
Current Rating6.5A
MountingSurface Mount
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Onsemi FDS9926A technical specifications.
General
Package/Case
SOIC
Continuous Drain Current (ID)
6.5A
Current Rating
6.5A
Drain to Source Breakdown Voltage
20V
Drain to Source Voltage (Vdss)
20V
Drain-source On Resistance-Max
30MR
Dual Supply Voltage
20V
Element Configuration
Dual
Fall Time
4ns
FET Type
2 N-Channel
Gate to Source Voltage (Vgs)
10V
Height
1.5mm
Input Capacitance
650pF
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
2W
Mount
Surface Mount
Nominal Vgs
1V
Number of Elements
2
Package Quantity
2500
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
2W
Radiation Hardening
No
Rds On Max
30mR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PowerTrench®
Termination
SMD/SMT
Threshold Voltage
1V
Turn-Off Delay Time
15ns
Turn-On Delay Time
8ns
DC Rated Voltage
20V
Weight
0.187g
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Onsemi FDS9926A Datasheet
Download the complete datasheet for Onsemi FDS9926A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

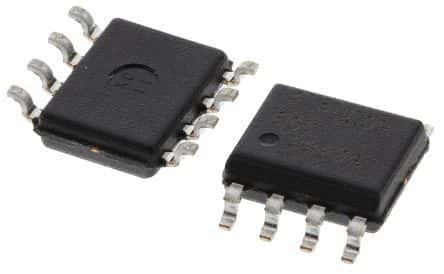

Product Images
