N-Channel PowerTrench® WL-CSP MOSFET, 20V Vdss, 10A continuous drain current, and 13mΩ Rds On. Features include 2 N-Channel FETs, 12V Gate to Source Voltage, and 2W maximum power dissipation. This surface mount component operates from -55°C to 150°C and is supplied on a 5000-piece tape and reel. RoHS compliant.
MountingSurface Mount
PolarityN-CHANNEL
Power2W
Quick Jump:
Technical Specifications
Onsemi FDZ1323NZ technical specifications.
General
| Continuous Drain Current (ID) | 10A |
| Drain to Source Resistance | 13mR |
| Drain to Source Voltage (Vdss) | 20V |
| Fall Time | 13ns |
| FET Type | 2 N-Channel |
| Gate to Source Voltage (Vgs) | 12V |
| Height | 0.15mm |
| Input Capacitance | 2.055nF |
| Length | 2.3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2W |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 2W |
| Radiation Hardening | No |
| Rds On Max | 13mR |
| RoHS Compliant | Yes |
| Series | PowerTrench® |
| Turn-Off Delay Time | 34ns |
| Turn-On Delay Time | 12ns |
| Weight | 0.05g |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FDZ1323NZ Datasheet
Download the complete datasheet for Onsemi FDZ1323NZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

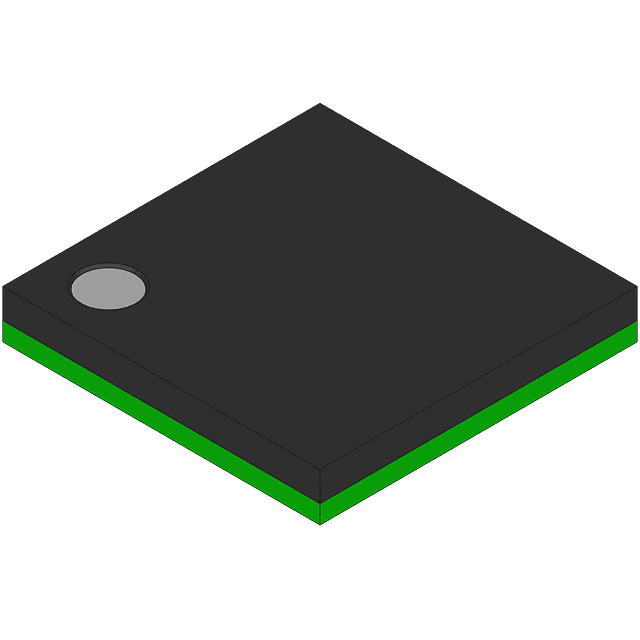

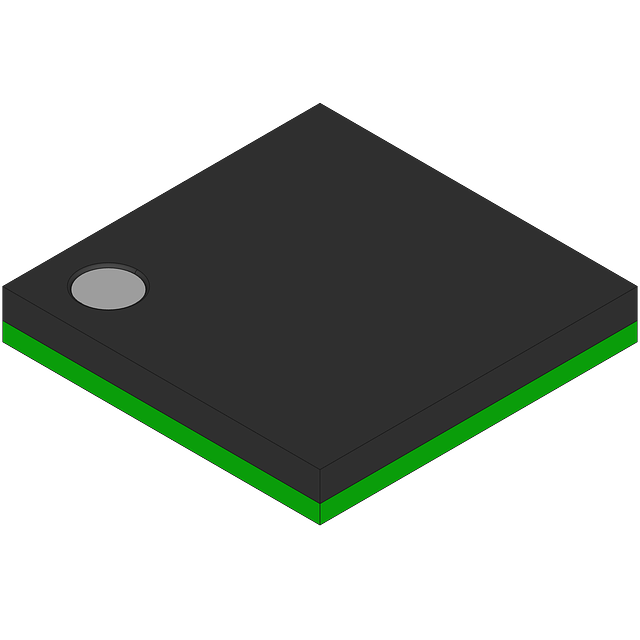

Product Images
