Dual NPN bipolar junction transistor for general-purpose applications. Features a 40V collector-emitter breakdown voltage and a 200mA maximum collector current. Operates with a 250MHz transition frequency and a minimum hFE of 70. Packaged in a surface-mount SC case, this RoHS compliant component is supplied on a 3000-piece tape and reel.
Frequency250MHz
PackageSC
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi FFB3904 technical specifications.
General
Package/Case
SC
Collector Base Voltage (VCBO)
60V
Collector Emitter Breakdown Voltage
40V
Collector Emitter Saturation Voltage
300mV
Collector Emitter Voltage (VCEO)
40V
Collector-emitter Voltage-Max
300mV
Current Rating
200mA
Emitter Base Voltage (VEBO)
6V
Frequency
250MHz
Gain Bandwidth Product
250MHz
Height
1mm
hFE Min
70
Lead Free
Lead Free
Length
2mm
Max Breakdown Voltage
40V
Max Collector Current
200mA
Max Frequency
100MHz
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
300mW
Mount
Surface Mount
Number of Elements
2
Package Quantity
3000
Packaging
Tape and Reel
Polarity
NPN
Power Dissipation
300mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Transition Frequency
250MHz
DC Rated Voltage
40V
Weight
0.028g
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Onsemi FFB3904 Datasheet
Download the complete datasheet for Onsemi FFB3904 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

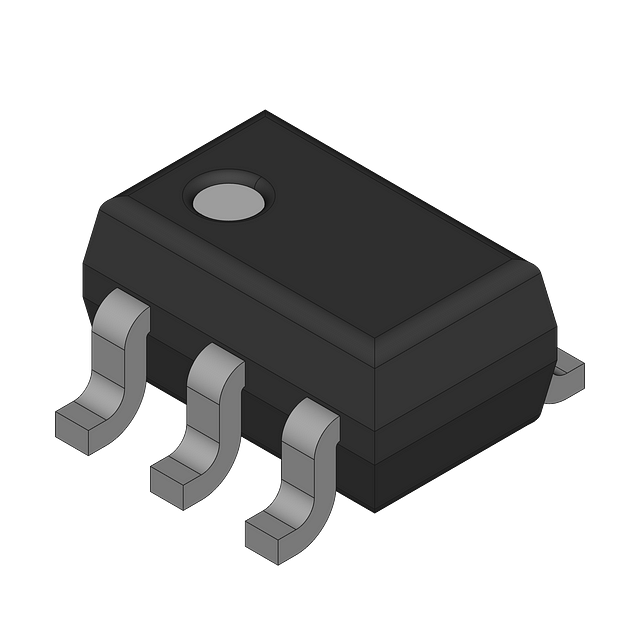

Product Images
