Technical Specifications
Onsemi FGH30S130P technical specifications.
General
| Package/Case | TO-247 |
| Collector Emitter Breakdown Voltage | 1.3kV |
| Collector Emitter Saturation Voltage | 1.9V |
| Collector Emitter Voltage (VCEO) | 1.3kV |
| Collector-emitter Voltage-Max | 2.3V |
| Height | 20.82mm |
| Input Type | STANDARD |
| Lead Free | Lead Free |
| Length | 15.87mm |
| Max Collector Current | 60A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | FGH30S130P |
| Weight | 6.39g |
| Width | 4.82mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FGH30S130P Datasheet
Download the complete datasheet for Onsemi FGH30S130P to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

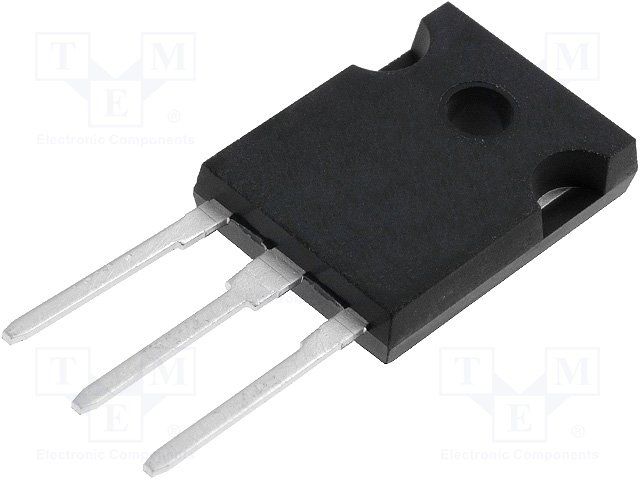

Product Images
