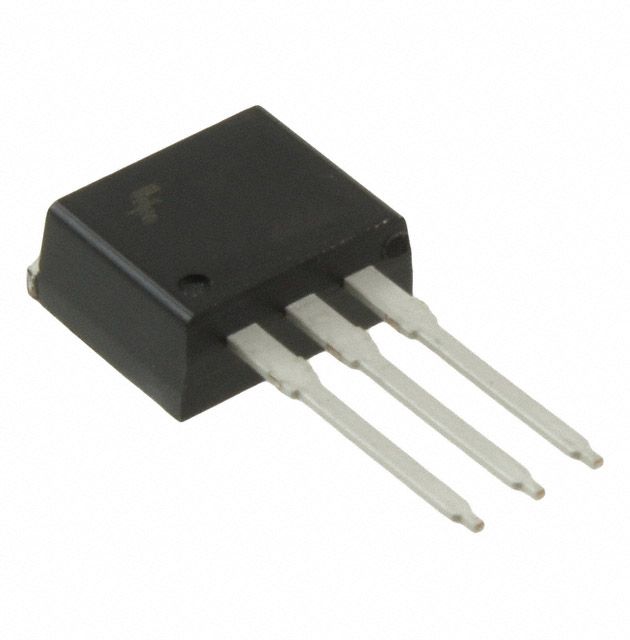

The FJI5603DTU is an NPN bipolar junction transistor with a collector-emitter breakdown voltage of 800V and a maximum collector current of 3A. It features a TO-262-3 package and is designed for through-hole mounting. The transistor has a maximum power dissipation of 100W and operates within a temperature range of -55°C to 150°C. It is compliant with RoHS regulations and is available in a lead-free package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi FJI5603DTU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi FJI5603DTU technical specifications.
| Package/Case | TO-262-3 |
| Collector Base Voltage (VCBO) | 1.6kV |
| Collector Emitter Breakdown Voltage | 800V |
| Collector Emitter Voltage (VCEO) | 800V |
| Collector-emitter Voltage-Max | 2.5V |
| Emitter Base Voltage (VEBO) | 12V |
| Frequency | 5MHz |
| Gain Bandwidth Product | 5MHz |
| hFE Min | 20 |
| Lead Free | Lead Free |
| Max Collector Current | 3A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 100W |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | NPN |
| Power Dissipation | 100W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Transition Frequency | 5MHz |
| Weight | 2.084g |
| RoHS | Compliant |
