The FLZ4V3B is a surface mount zener diode with a DC rated voltage of 4.3V and a voltage tolerance of 2%. It has a maximum power dissipation of 500mW and a maximum reverse leakage current of 470nA. The diode operates over a temperature range of -65°C to 175°C. It is available in tape and reel packaging with a quantity of 2500 units per reel.
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Onsemi FLZ4V3B technical specifications.
General
| Impedance | 32R |
| Lead Free | Lead Free |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 500mW |
| Max Reverse Leakage Current | 470nA |
| Mount | Surface Mount |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| RoHS Compliant | No |
| Tolerance | 3% |
| DC Rated Voltage | 4.3V |
| Voltage Tolerance | 2% |
| Weight | 0.05184g |
| Zener Current | 20mA |
| Zener Voltage | 4.3V |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi FLZ4V3B Datasheet
Download the complete datasheet for Onsemi FLZ4V3B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

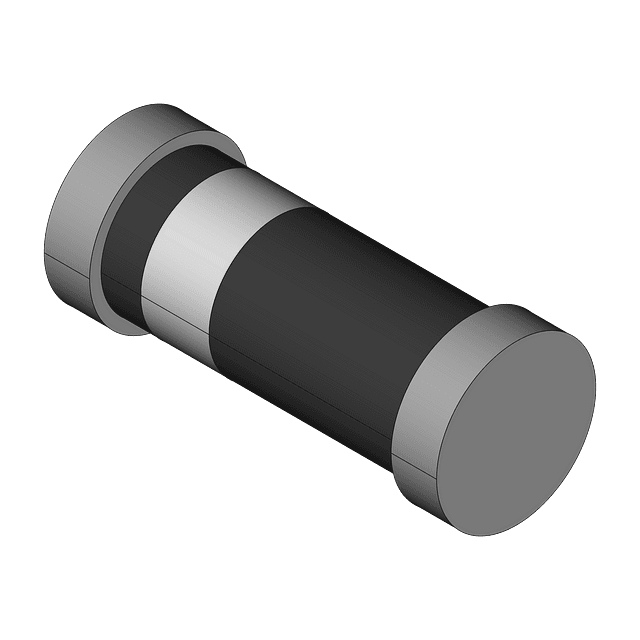

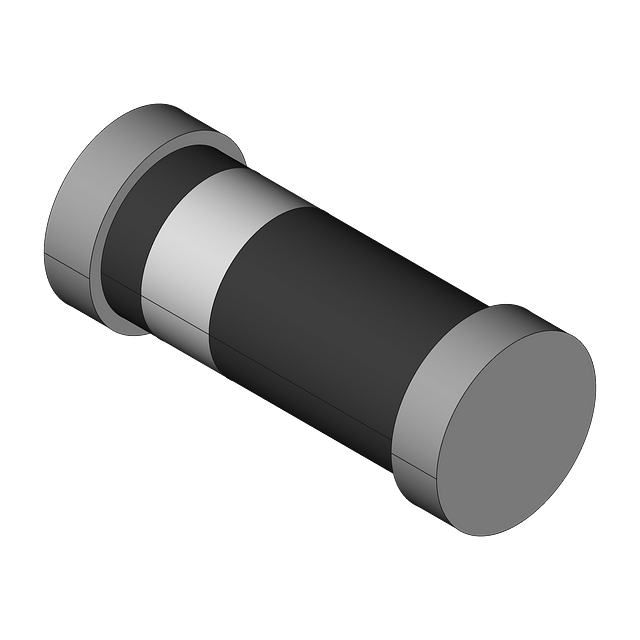

Product Images
