The FMS6145MTC14 is a 5-channel video processing IC from Onsemi, packaged in a TSSOP with a lead-free finish. It operates over a temperature range of -40°C to 85°C and features a quiescent current of 30mA. This IC is suitable for surface mount applications and is compliant with RoHS regulations.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi FMS6145MTC14 technical specifications.
General
| Package/Case | TSSOP |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Channels | 5 |
| Package Quantity | 94 |
| Packaging | Rail/Tube |
| Quiescent Current | 30mA |
| RoHS Compliant | Yes |
| Series | FMS6145 |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FMS6145MTC14 Datasheet
Download the complete datasheet for Onsemi FMS6145MTC14 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

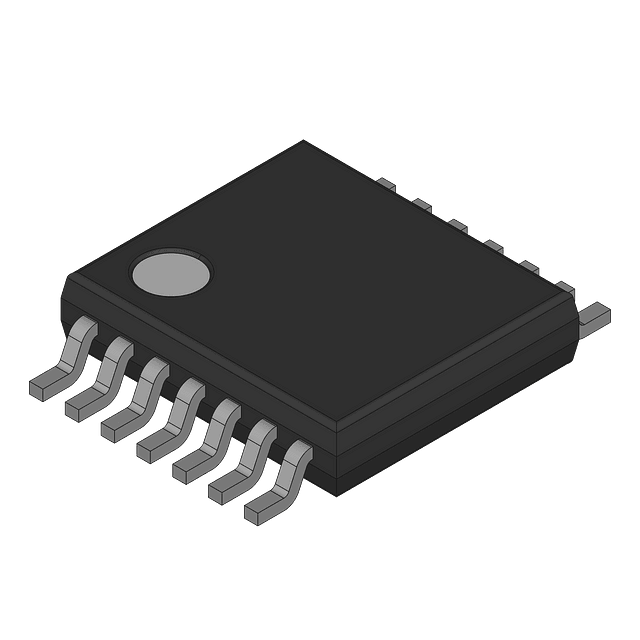

Product Images
