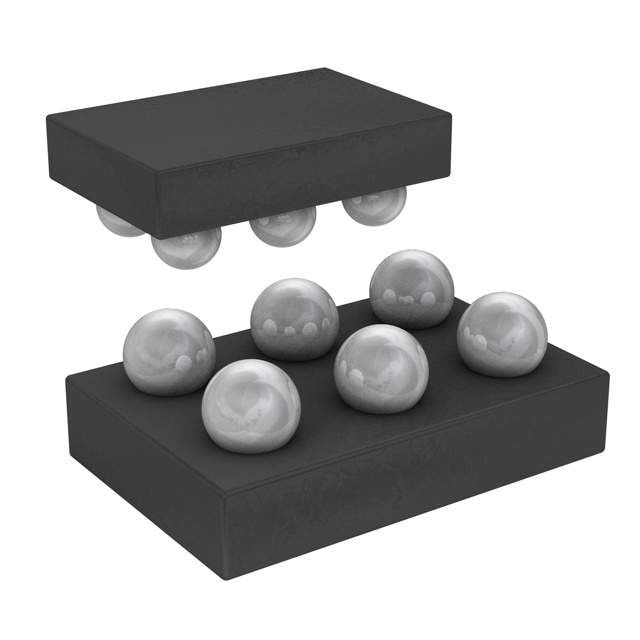

High-side load switch IC with 2A maximum output current, featuring a 1.2V to 5.5V input voltage range and 30mΩ maximum on-state resistance. This surface-mount device offers a single output and operates within a -40°C to 85°C temperature range. Packaging includes 3000 units on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi FPF1004 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi FPF1004 technical specifications.
| Current | 2A |
| Height | 0.332mm |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 0.98mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 1.2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Power Dissipation | 1.2W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| On-state Resistance-Max | 30MR |
| Output Configuration | High Side |
| Output Current | 2A |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.2W |
| Rated Current-Max | 2A |
| RoHS Compliant | Yes |
| Series | IntelliMAX™ |
| Voltage | 5.5V |
| Weight | 0.06g |
| Width | 1.48mm |
| RoHS | Compliant |
