Single-channel, surface-mount load switch with adjustable current limit from 150mA to 1A. Features over-temperature and reverse current fault protection, with a maximum output current of 1.5A. Operates from 1.8V to 5.5V input voltage, offering a maximum power dissipation of 1.2W. Includes on/off interface, 160mΩ maximum on-state resistance, and 25µs turn-on/45µs turn-off delay. Packaged in a tape and reel for 3000 units.
Voltage5.5V
Current1A
MountingSurface Mount
Power1.2W
Quick Jump:
Technical Specifications
Onsemi FPF2164 technical specifications.
General
| Current | 1A |
| Fault Protection | Over Temperature, Reverse Current |
| Height | 0.75mm |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 2mm |
| Min Current Limit | 150mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 1.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 1.2W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| On-state Resistance-Max | 160MR |
| Output Configuration | High Side |
| Output Current | 150mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.2W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | FPF2164 |
| Turn-Off Delay Time | 45us |
| Turn-On Delay Time | 25us |
| Voltage | 5.5V |
| Weight | 0.03g |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FPF2164 Datasheet
Download the complete datasheet for Onsemi FPF2164 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

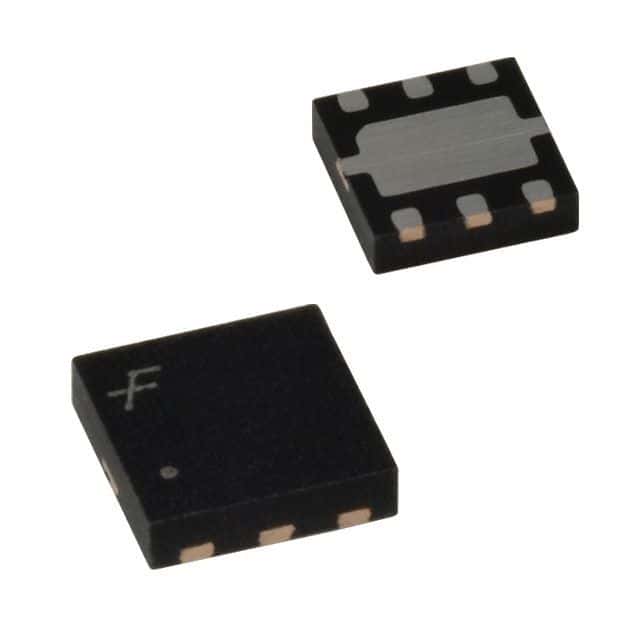

Product Images
