High-performance current limit switch with 1.5A maximum output current and 80mΩ on-resistance. Features over-temperature and reverse current fault protection, operating from 1.8V to 5.5V input voltage. This single-input, single-output device offers a 600mA output current and a 150mA minimum current limit. Designed for surface mount applications with a compact 0.98mm x 1.48mm x 0.62mm CSP package, it operates within a -40°C to 85°C temperature range.
Voltage5.5V
Current1.5A
Resistance80mR
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi FPF2194 technical specifications.
General
| Current | 1.5A |
| Fault Protection | Over Temperature, Reverse Current |
| Height | 0.62mm |
| Interface | On/Off |
| Length | 0.98mm |
| Min Current Limit | 150mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 1.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 1.2W |
| Mount | Surface Mount |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Number of Switches | 1 |
| Operating Supply Voltage | 5.5V |
| Output Configuration | High Side |
| Output Current | 600mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.2W |
| Resistance | 80mR |
| RoHS Compliant | Yes |
| Voltage | 5.5V |
| Weight | 0.06g |
| Width | 1.48mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FPF2194 Datasheet
Download the complete datasheet for Onsemi FPF2194 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

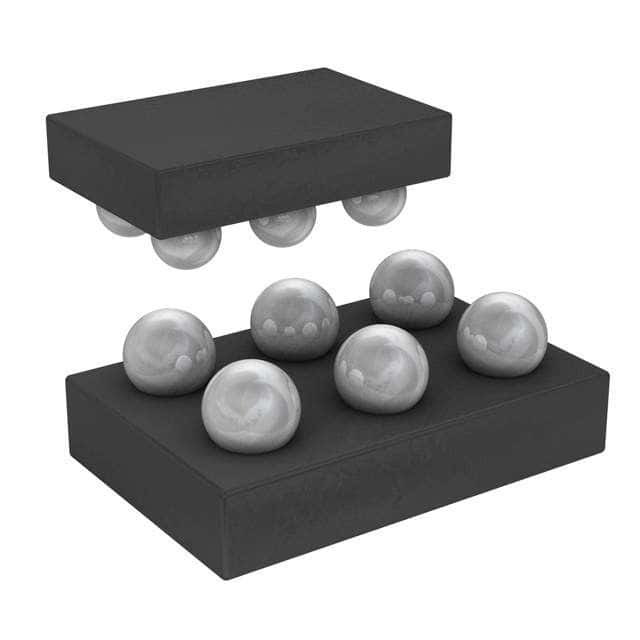

Product Images
