Technical Specifications
Onsemi FPF2195BUCX technical specifications.
General
| Current | 1.5A |
| Fault Protection | Over Temperature, Reverse Current |
| Height | 0.62mm |
| Interface | On/Off |
| Length | 0.98mm |
| Min Current Limit | 150mA |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 1.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 1.2W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5.5V |
| Output Configuration | High Side |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Resistance | 135mR |
| RoHS Compliant | Yes |
| Voltage | 5.5V |
| Weight | 0.06g |
| Width | 1.48mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FPF2195BUCX Datasheet
Download the complete datasheet for Onsemi FPF2195BUCX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

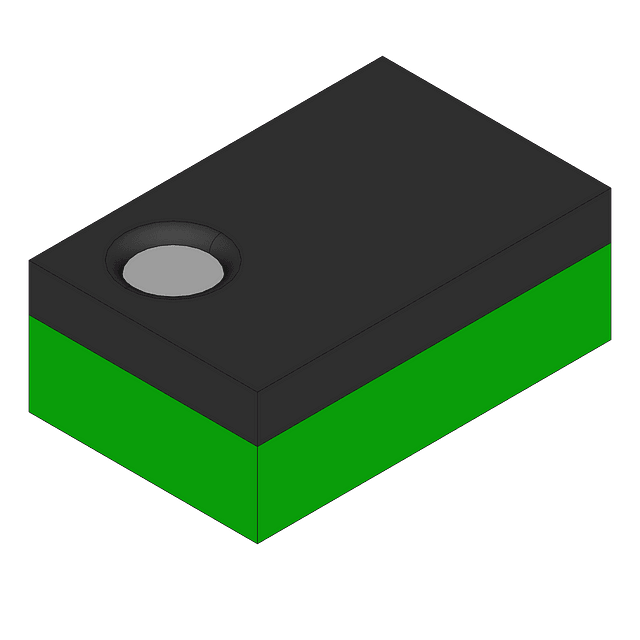

Product Images
