Technical Specifications

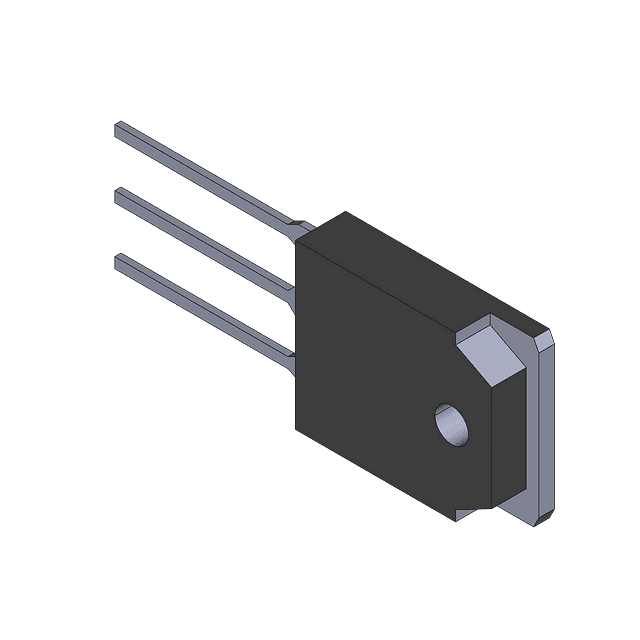

Onsemi FQA13N50C-F109 technical specifications.
General
| Continuous Drain Current (ID) | 13.5A |
| Drain to Source Voltage (Vdss) | 500V |
| Element Configuration | Single |
| Input Capacitance | 2.055nF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 218W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Rds On Max | 480mR |
| RoHS Compliant | Yes |
| Series | QFET® |
| Weight | 6.401g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FQA13N50C-F109 Datasheet
Download the complete datasheet for Onsemi FQA13N50C-F109 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
