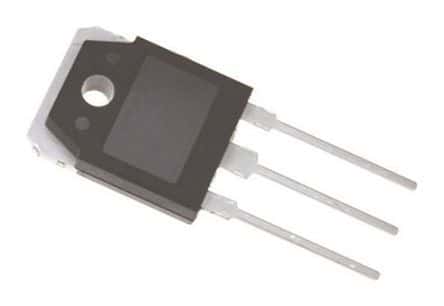

N-channel Power MOSFET featuring 100V drain-source breakdown voltage and a 70A continuous drain current. This QFET® series device offers a low 23mΩ drain-source on-resistance at a nominal 4V gate-source voltage. With a maximum power dissipation of 214W and an operating temperature range of -55°C to 175°C, it is suitable for demanding applications. The TO-3P package facilitates through-hole mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi FQA70N10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Continuous Drain Current (ID) | 70A |
| Current Rating | 70A |
| Drain to Source Breakdown Voltage | 100V |
| Drain to Source Resistance | 25mR |
| Drain to Source Voltage (Vdss) | 100V |
| Drain-source On Resistance-Max | 23mR |
| Dual Supply Voltage | 100V |
| Element Configuration | Single |
| Fall Time | 160ns |
| Gate to Source Voltage (Vgs) | 25V |
| Height | 18.9mm |
| Input Capacitance | 3.3nF |
| Lead Free | Lead Free |
| Length | 15.8mm |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 214W |
| Mount | Through Hole |
| Nominal Vgs | 4V |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 214W |
| Radiation Hardening | No |
| Rds On Max | 23mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | QFET® |
| Threshold Voltage | 4V |
| Turn-Off Delay Time | 130ns |
| Turn-On Delay Time | 30ns |
| DC Rated Voltage | 100V |
| Weight | 6.401g |
| Width | 5mm |
| RoHS | Compliant |
