Technical Specifications
Onsemi FQA90N10V2 technical specifications.
General
| Continuous Drain Current (ID) | 105A |
| Drain to Source Breakdown Voltage | 100V |
| Drain to Source Resistance | 10mR |
| Drain to Source Voltage (Vdss) | 100V |
| Fall Time | 355ns |
| Gate to Source Voltage (Vgs) | 30V |
| Input Capacitance | 6.15nF |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 330W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 330W |
| Rds On Max | 10mR |
| RoHS Compliant | Yes |
| Series | QFET® |
| Turn-Off Delay Time | 304ns |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FQA90N10V2 Datasheet
Download the complete datasheet for Onsemi FQA90N10V2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

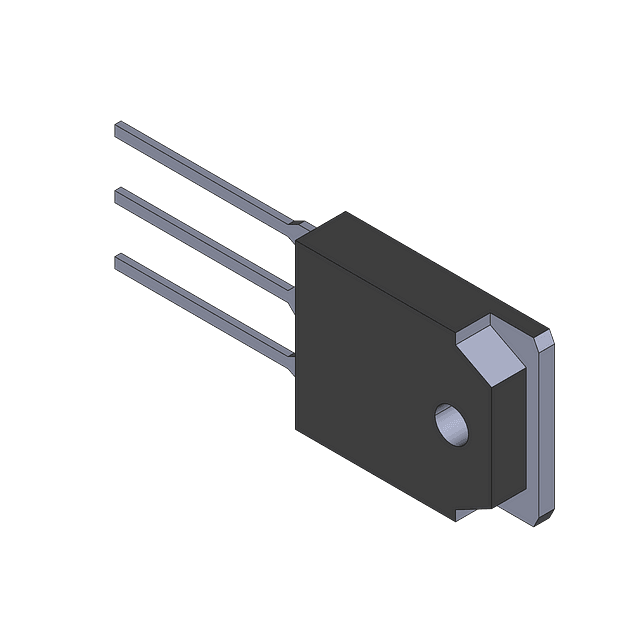

Product Images
