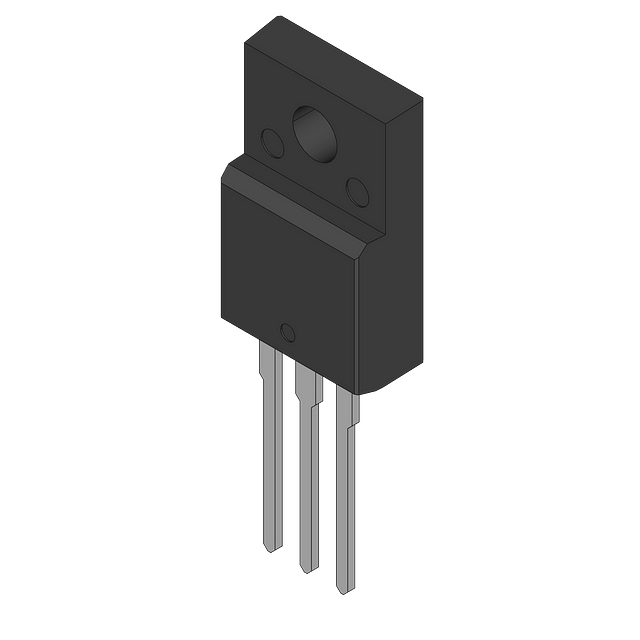

N-Channel MOSFET, 300V Drain to Source Breakdown Voltage, 12A Continuous Drain Current, 160mΩ Drain to Source Resistance. Features a TO-220-3 through-hole package, 56W maximum power dissipation, and operates from -55°C to 150°C. Includes 35ns turn-on delay and 85ns turn-off delay. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi FQPF22N30 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220-3 |
| Continuous Drain Current (ID) | 12A |
| Current Rating | 12A |
| Drain to Source Breakdown Voltage | 300V |
| Drain to Source Resistance | 160mR |
| Drain to Source Voltage (Vdss) | 300V |
| Element Configuration | Single |
| Fall Time | 100ns |
| Gate to Source Voltage (Vgs) | 30V |
| Input Capacitance | 2.2nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 56W |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 56W |
| Radiation Hardening | No |
| Rds On Max | 160mR |
| RoHS Compliant | Yes |
| Series | QFET® |
| Turn-Off Delay Time | 85ns |
| Turn-On Delay Time | 35ns |
| DC Rated Voltage | 300V |
| Weight | 2.27g |
| RoHS | Compliant |
