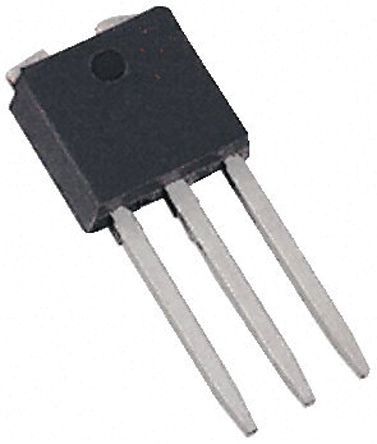

P-channel power MOSFET featuring a -200V drain-source breakdown voltage and a continuous drain current of 3.7A. This device offers a low drain-source on-resistance of 1.4Ω, a maximum power dissipation of 2.5W, and operates within a temperature range of -55°C to 150°C. Packaged in a TO-251-3 (IPAK) through-hole mount, it boasts fast switching characteristics with turn-on delay times of 9ns and fall times of 25ns. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi FQU5P20TU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-251-3 |
| Continuous Drain Current (ID) | 3.7A |
| Current Rating | -3.7A |
| Drain to Source Breakdown Voltage | -200V |
| Drain to Source Resistance | 1.4R |
| Drain to Source Voltage (Vdss) | 200V |
| Drain-source On Resistance-Max | 1.4R |
| Element Configuration | Single |
| Fall Time | 25ns |
| Gate to Source Voltage (Vgs) | 30V |
| Height | 7.57mm |
| Input Capacitance | 430pF |
| Lead Free | Lead Free |
| Length | 6.8mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2.5W |
| Mount | Through Hole |
| Package Quantity | 70 |
| Packaging | Rail/Tube |
| Polarity | P-CHANNEL |
| Power Dissipation | 2.5W |
| Radiation Hardening | No |
| Rds On Max | 1.4R |
| RoHS Compliant | Yes |
| Series | QFET™ |
| Turn-Off Delay Time | 12ns |
| Turn-On Delay Time | 9ns |
| DC Rated Voltage | -200V |
| Weight | 0.34308g |
| Width | 2.5mm |
| RoHS | Compliant |
