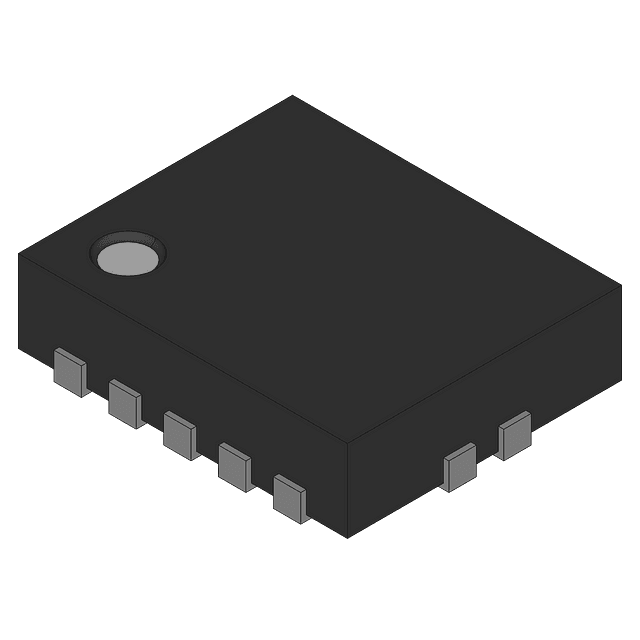

The FSA2367BQX is a surface mount logic IC with a bandwidth of 150MHz and a maximum power dissipation of 2.5uW. It operates within a temperature range of -40°C to 85°C and is supplied with a voltage between 2.6V and 4.3V. The device is available in a single package quantity and is packaged in tape and reel. It is compliant with RoHS regulations and is suitable for use in surface mount applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi FSA2367BQX datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi FSA2367BQX technical specifications.
| Bandwidth | 150MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2.5uW |
| Max Supply Current | 10uA |
| Max Supply Voltage | 4.3V |
| Min Supply Voltage | 2.6V |
| Mount | Surface Mount |
| On-State Resistance | 2R |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Throw Configuration | SPDT |
| Weight | 0.12g |
| RoHS | Compliant |
