Single 4PDT analog switch IC featuring 4 inputs and 8 outputs, with a -3dB bandwidth of 475MHz. This surface mount component operates from a 2.7V to 4.3V single supply, drawing a maximum of 1uA. Packaged in tape and reel, it offers a wide operating temperature range of -40°C to 85°C and a low profile of 0.75mm. RoHS compliant and lead-free.
Current1uA
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Onsemi FSA2567MPX technical specifications.
General
| -3db Bandwidth | 475MHz |
| Height | 0.75mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 1uA |
| Max Supply Voltage | 4.3V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Inputs | 4 |
| Number of Outputs | 8 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1uA |
| Supply Type | Single |
| Throw Configuration | 4PDT |
| Weight | 0.126g |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FSA2567MPX Datasheet
Download the complete datasheet for Onsemi FSA2567MPX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

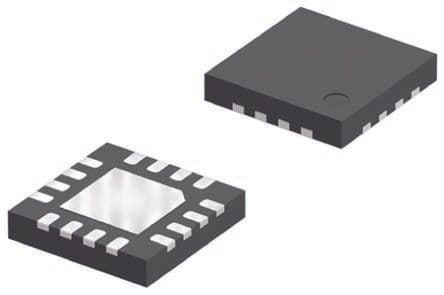

Product Images
